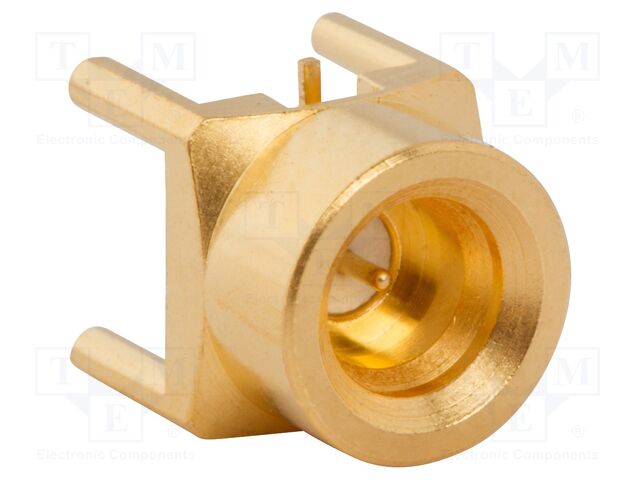

Specification	SMP-MSLD-PCT19T

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max	20 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

smp Series

Part	Center Contact Material	Mounting Type	Features	Connector Type	Connector Style	Housing Color	Frequency - Max	Number of Ports	Fastening Type	Contact Termination	Impedance	Shield Termination	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mating Cycles	Body Finish	Body Material	Dielectric Material	Voltage Rating
McGill Microwave Systems SMP-MSLD-PCT19T	Brass	Through Hole	Limited Detent	Jack Male Pin	SMP	Gold	20 Gbps	1	Snap-On	Solder	50 Ohm	Solder	-65 °C	165 °C	Gold	500 cycles	Gold	Brass	Liquid Crystal Polymer (LCP)
McGill Microwave Systems SMP-MSLD-PCS17T	Brass	Surface Mount	Limited Detent	Jack Male Pin	SMP	Gold	18 GHz	1	Snap-On	Solder	50 Ohm	Solder
McGill Microwave Systems SMP-MSLD-PCT16T	Brass	Through Hole	Limited Detent	Jack Male Pin	SMP	Gold	6000 MHz	1	Snap-On	Solder	50 Ohm	Solder
McGill Microwave Systems SMP-MSSB-PCE-4T	Beryllium Copper	Board Edge Cutout Surface Mount	Smooth Bore	Jack Male Pin	SMP	Gold	26.5 GHz	1	Snap-On	Solder	50 Ohm	Solder	-65 °C	165 °C	Gold	500 cycles	Gold	Brass	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems SMP-MSSB-PCS17T	Brass	Surface Mount	Smooth Bore	Jack Male Pin	SMP	Gold	20 Gbps	1	Snap-On	Solder	50 Ohm	Solder	-40 °C	85 °C	Gold	1000 cycles	Gold	Brass	Liquid Crystal Polymer (LCP)
McGill Microwave Systems SMP-MSCM-PCT-10	Brass	Through Hole	Catcher's Mitt	Jack Male Pin	SMP	Gold	20 Gbps	1	Snap-On	Solder	50 Ohm	Solder	-40 °C	85 °C	Gold	500 cycles	Gold	Brass	Liquid Crystal Polymer (LCP)
McGill Microwave Systems SMP-MSSB-PCT-10	Brass	Through Hole	Smooth Bore	Jack Male Pin	SMP	Gold	20 Gbps	1	Snap-On	Solder	50 Ohm	Solder	-40 °C	85 °C	Gold	1000 cycles	Gold	Brass	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems SMP-MSFD-PCR	Beryllium Copper	Surface Mount	Full Detent	Jack Male Pin	SMP	Gold	6000 MHz	1	Snap-On	Solder	50 Ohm	Solder	-65 °C	165 °C	Gold	500 cycles	Gold	Brass	Polyetheretherketone (PEEK)
McGill Microwave Systems 302114	Brass	Board Edge End Launch	Limited Detent	Male Pin Receptacle	SMP	Gold	26.5 GHz	1	Snap-On	Solder	50 Ohm	Solder	-65 °C	165 °C	Gold	100 cycles	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500 V
McGill Microwave Systems SMP-MSLD-PCE-3	Beryllium Copper	Board Edge Cutout Surface Mount	Limited Detent	Jack Male Pin	SMP	Gold	18 GHz	1	Snap-On	Solder	50 Ohm	Solder	-65 °C	165 °C	Gold	500 cycles	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)
