PF2007/16 NA008

Active

ALPHA WIRE

PIF2007/16 NATURAL 25 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

PIF2007/16 NATURAL 25 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PF2007/16 NA008

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Natural
Diameter - Inside [diameter]	0.438 in
Diameter - Inside [diameter]	11.13 mm
Diameter - Outside [diameter]	13 mm
Diameter - Outside [diameter]	0.512 in
Environment Protection	Corrosion Resistant
Features	Clean Cut
Length [x]	25 ft
Length [x]	7.62 m
Material	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

PIF2007/16 NATURAL 25 FT ROHS COMPLIANT: YES

Part	Environment Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Type Attributes	Length [x]	Length [x]	Abrasion Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material	Features	Type
ALPHA WIRE PF2007/16 NA008	Corrosion Resistant	13 mm	0.512 in	UL VW-1	Natural	0.438 in	11.13 mm	0.025 in	0.64 mm	Braided	25 ft	7.62 m	Abrasion Resistant, Fray Resistant	200 °C	-70 °C	Fiberglass, Silicone Coated	Clean Cut	Sleeving

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

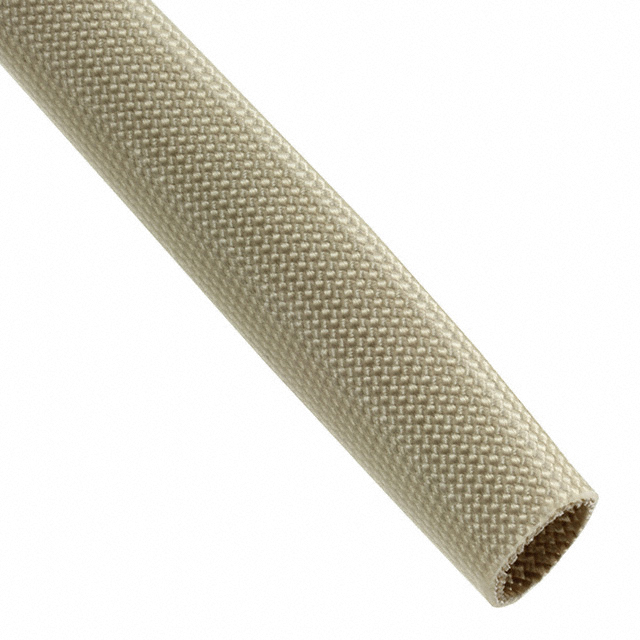

Natural Fiberglass, Silicone Coated Braided Sleeving 0.438" (11.13mm) 25.00' (7.62m)
