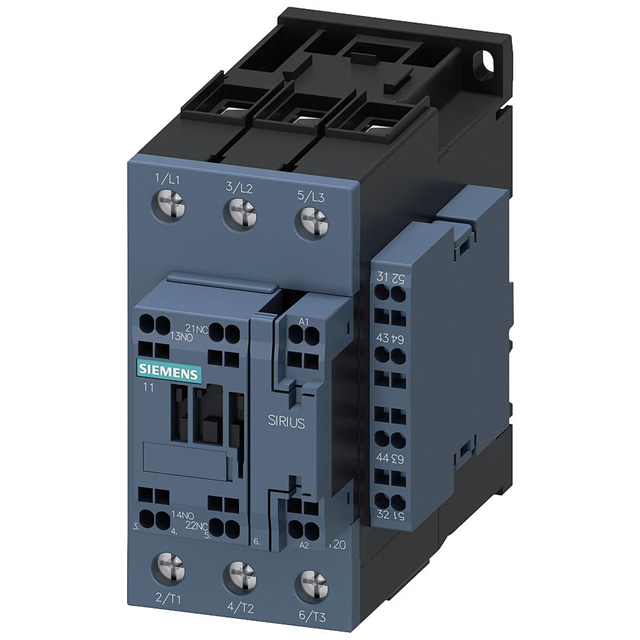

3RT20353AP06

Active

Siemens

CONTACTOR S2 40A 230VAC LAT AUX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Simply Switch Safely WhitePaper SIRIUS Contactor Selection Guide.pdy +2

3RT20353AP06

Active

Siemens

CONTACTOR S2 40A 230VAC LAT AUX

Deep-Dive with AI

DocumentsSIRIUS Contactor Simply Switch Safely WhitePaper SIRIUS Contactor Selection Guide.pdy +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20353AP06

Coil Power	190 VA
Coil Voltage	230 VAC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	60 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	184 VAC
Operate Time	80 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	18 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

3RT2035 Series

Part	Operate Time	Coil Voltage	Contact Rating (Current)	Contact Form	Coil Power	Features	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Mounting Type	Must Operate Voltage	Release Time	Coil Voltage [Min]	Coil Voltage [Max]
Siemens 3RT20351AV00	80 ms	400 VAC	40 A	3PST-NO (3 Form A)	190 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	320 VAC	18 ms
Siemens 3RT20353SB30	110 ms		60 A	3PST-NO (3 Form A)	40 W	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail		55 ms	21 VAC/DC	33 VAC/DC
Siemens 3RT20351CP04	80 ms	230 VAC	40 A	3PST-NO (3 Form A)	190 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	184 VAC	18 ms
Siemens 3RT20351AK64	80 ms	120 VAC	60 A	3PST-NO (3 Form A)	188 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	96 VAC	18 ms
Siemens 3RT20353AF04	80 ms	110 VAC/DC	40 A	3PST-NO (3 Form A)	190 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	88 VAC/DC	18 ms
Siemens 3RT20351AP04	80 ms	230 VAC	40 A	3PST-NO (3 Form A)	190 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	184 VAC	18 ms
Siemens 3RT20351NF34	110 ms		40 A	3PST-NO (3 Form A)	23 W	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail		55 ms
Siemens 3RT20353AP06	80 ms	230 VAC	60 A	3PST-NO (3 Form A)	190 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	184 VAC	18 ms
Siemens 3RT20351AG24	80 ms	110 VAC/DC	60 A	3PST-NO (3 Form A)	188 VA	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	93.5 VAC	18 ms
Siemens 3RT20353KB40	80 ms	24 VDC	60 A	3PST-NO (3 Form A)	21.5 W	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	19.2 VDC	55 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 263.64
