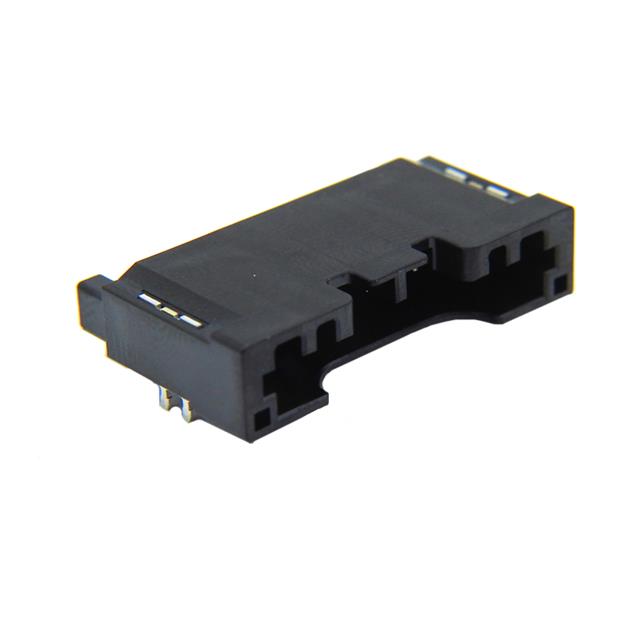

IMSA-13103B-10Y900

Active

IRISO USA Inc.

HEADER SMT RA 10POS KEY-A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13103B-10Y900

Active

IRISO USA Inc.

HEADER SMT RA 10POS KEY-A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMSA-13103B-10Y900

Connector Type	Plug
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Black
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Polyphenylene Sulfide (PPS)
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

IMSA-13103B Series

Part	Contact Type	Insulation Material	Insulation Color	Features	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Insulation Height	Insulation Height	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Style	Voltage Rating	Mounting Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Termination
IRISO USA Inc. IMSA-13103B-20Y901	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	20	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-02Y901	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	2	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-04Y900	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	4	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-04Y901	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	4	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-10Y900	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	10	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-20B-TR	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	20	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-20Y900	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	20	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-02A-TR	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	2	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-08A-TR	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	8	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder
IRISO USA Inc. IMSA-13103B-08Y901	Male Pin	Polyphenylene Sulfide (PPS)	Black	Solder Retention	Latch Holder	8	1 µm	39.4 µin	Plug	Shrouded - 4 Wall	6.5 mm	0.256 in	Tin	0.079 in	2 mm	1	Board to Cable/Wire	50 VAC	Surface Mount Right Angle	All	125 °C	-40 °C	Copper Alloy	3 A	1 çm	39.4 çin	Square	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.42
		10	$ 1.20
		100	$ 1.08
	Digi-Reel®	1	$ 1.42
		10	$ 1.20
		100	$ 1.08
	Tray	350	$ 0.69

Description

General part information

IMSA-13103B Series

Connector Header Surface Mount, Right Angle 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources
