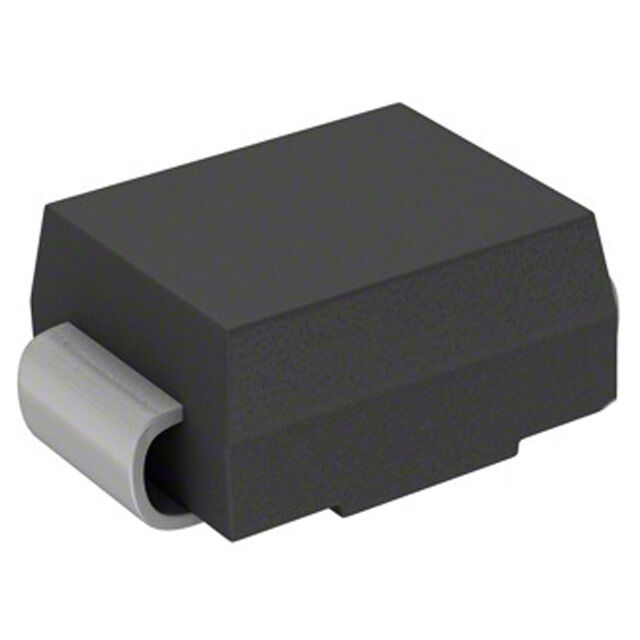

TVP06B620CA-HF
ActiveComchip Technology
TVS DIODE 53VWM 85VC DO214AA
Deep-Dive with AI
Search across all available documentation for this part.
TVP06B620CA-HF
ActiveComchip Technology
TVS DIODE 53VWM 85VC DO214AA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TVP06B620CA-HF | TVP06B620 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Bidirectional Channels [custom] | 1 | 1 |
| Current - Peak Pulse (10/1000µs) | 7.06 A | 7.06 A |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | SMB, DO-214AA | SMB, DO-214AA |
| Power - Peak Pulse | 600 W | 600 W |
| Power Line Protection | False | False |
| Supplier Device Package | SMB | SMB |
| Supplier Device Package | DO-214AA | DO-214AA |
| Type | Zener | Zener |
| Unidirectional Channels | - | 1 |
| Voltage - Breakdown (Min) [Min] | 58.9 V | 58.9 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 85 V | 85 V |
| Voltage - Reverse Standoff (Typ) | 53 V | 53 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.19 | |
| 6000 | $ 0.18 | |||
| 9000 | $ 0.17 | |||
| 15000 | $ 0.16 | |||
| 21000 | $ 0.15 | |||
| 30000 | $ 0.15 | |||
TVP06B620 Series
TVS DIODE 53VWM 85VC DO214AA
| Part | Applications | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Mounting Type | Supplier Device Package | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Breakdown (Min) [Min] | Type | Power Line Protection | Voltage - Reverse Standoff (Typ) | Bidirectional Channels [custom] | Package / Case | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology TVP06B620CA-HF | General Purpose | 600 W | 7.06 A | Surface Mount | SMB | DO-214AA | -55 °C | 150 °C | 85 V | 58.9 V | Zener | 53 V | 1 | DO-214AA, SMB | ||
Comchip Technology TVP06B620A-G | General Purpose | 600 W | Surface Mount | SMB | DO-214AA | -55 °C | 150 °C | Zener | DO-214AA, SMB | 1 | ||||||
Comchip Technology TVP06B620CA-G | General Purpose | 600 W | Surface Mount | SMB | DO-214AA | -55 °C | 150 °C | Zener | 1 | DO-214AA, SMB |
Description
General part information
TVP06B620 Series
85V Clamp 7.06A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
