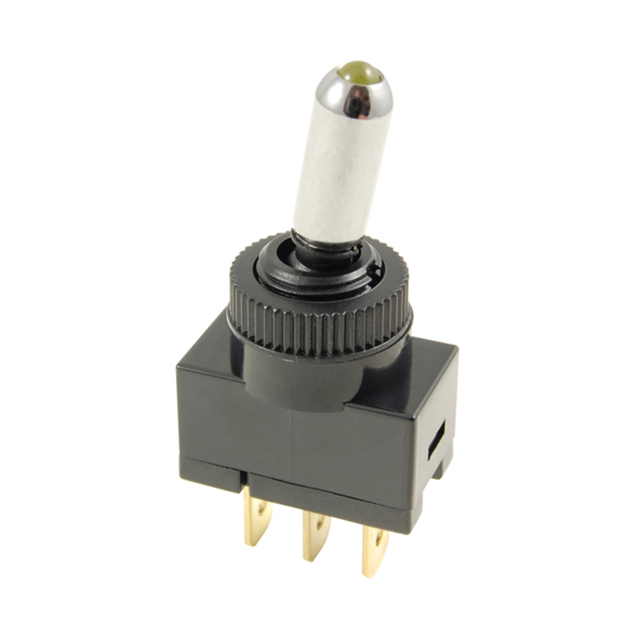

54-706-A

Active

NTE Electronics, Inc

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	54-706-A

Actuator Length [x]	24.5 mm
Actuator Type	Paddle
Circuit	SPST
Current Rating (Amps)	20 A
Illumination	Illuminated
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Illumination Type, Color	Circuit	Termination Style	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Illumination	Voltage Rating - DC	Illumination Voltage (Nominal)	Actuator Type
NTE Electronics, Inc 54-706-G	Green LED	SPST	Quick Connect - 0.250" (6.3mm)	24.5 mm	85 °C	-20 C	On-Off	20 A	Illuminated	12 V	12 VDC	Paddle
NTE Electronics, Inc 54-706-A	Amber LED	SPST	Quick Connect - 0.250" (6.3mm)	24.5 mm	85 °C	-20 C	On-Off	20 A	Illuminated	12 V	12 VDC	Paddle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPST Panel Mount
