357-088-459-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-088-459-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-088-459-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 88 |
| Number of Positions/Bay/Row [custom] | 44 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-088 Series
...
| Part | Features | Termination | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination Rows | Material - Insulation | Contact Material | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions | Read Out | Contact Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Extender | Solder Eyelet(s) | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | |||
EDAC Inc. | Card Extender | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Tin | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | |||
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Tin | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Tin | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |||
EDAC Inc. | Solder Wire Wrap | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Tin | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |||
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Solder | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 44 | 88 | Dual | Semi Bellows | Female | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-088 Series

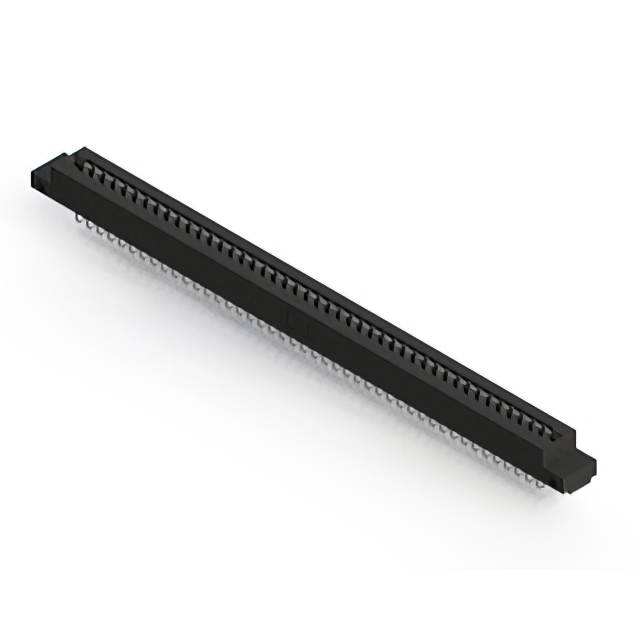

88 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
