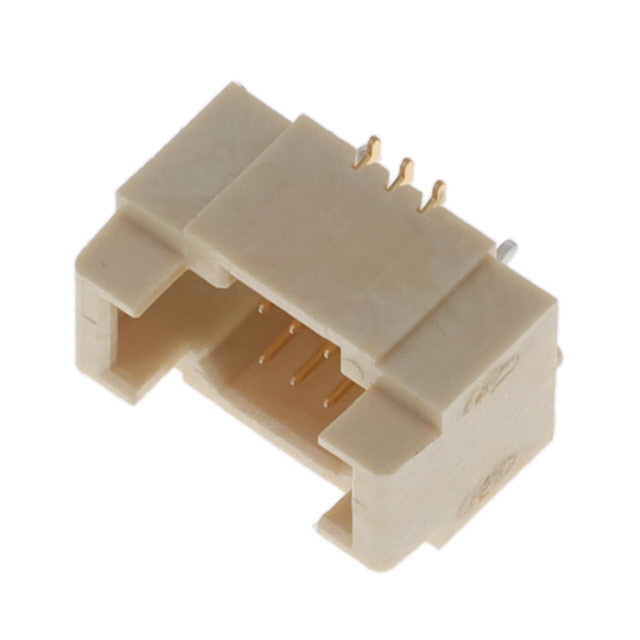

T1M-03-GF-DV

Active

Samtec Inc.

CONN HEADER SMD 6POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDiscrete Wire Terminal Strip, 1.00 mm Pitch T1M Datasheet +2

T1M-03-GF-DV

Active

Samtec Inc.

CONN HEADER SMD 6POS 1MM

Deep-Dive with AI

DocumentsDiscrete Wire Terminal Strip, 1.00 mm Pitch T1M Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-03-GF-DV

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	6.8 mm
Insulation Height	0.268 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-03 Series

Part	Termination	Insulation Color	Fastening Type	Contact Type	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Positions Loaded	Contact Finish - Mating	Contact Material	Material Flammability Rating	Number of Rows	Shrouding	Voltage Rating	Contact Finish - Post	Contact Shape	Mounting Type	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. T1M-03-F-SV-L	Solder	Natural	Locking Ramp	Male Pin	Header	5.51 mm	0.217 in	3 µin	0.076 µm	Board to Cable/Wire	0.039 in	1 mm	3.3 A	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	All	Gold	Phosphor Bronze	UL94 V-0	1	Shrouded - 4 Wall	250 VAC 353 VDC	Tin	Square	Surface Mount
Samtec Inc. T1M-03-GF-DV	Solder	Natural	Locking Ramp	Male Pin	Header			3 µin	0.076 µm	Board to Cable/Wire	0.039 in	1 mm	3.3 A	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	All	Gold	Phosphor Bronze	UL94 V-0	2	Shrouded - 4 Wall	250 VAC 353 VDC	Gold	Square	Surface Mount	6.8 mm	0.268 in	6	3 µin	0.076 µm
Samtec Inc. T1M-03-T-SH-L	Solder	Natural	Locking Ramp	Male Pin	Header					Board to Cable/Wire	0.039 in	1 mm	3.3 A	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	All		Phosphor Bronze	UL94 V-0	1	Shrouded - 4 Wall	250 VAC 353 VDC	Tin	Square	Surface Mount Right Angle	4.6 mm	0.181 in
Samtec Inc. T1M-03-T-RA-TR	Solder	Natural	Locking Ramp	Male Pin	Header					Board to Cable/Wire	0.039 in	1 mm	3.3 A	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	All		Phosphor Bronze	UL94 V-0	1	Shrouded - 4 Wall	250 VAC 353 VDC	Tin	Square	Surface Mount Right Angle	3.2 mm	0.126 in
Samtec Inc. T1M-03-F-SH-L	Solder	Natural	Locking Ramp	Male Pin	Header			3 µin	0.076 µm	Board to Cable/Wire	0.039 in	1 mm	3.3 A	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	All	Gold	Phosphor Bronze	UL94 V-0	1	Shrouded - 4 Wall	250 VAC 353 VDC	Tin	Square	Surface Mount Right Angle	4.6 mm	0.181 in
Samtec Inc. T1M-03-S-S-V-TR	Solder	Natural	Locking Ramp	Male Pin	Header					Board to Cable/Wire	0.039 in	1 mm	3.3 A	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	All	Gold	Phosphor Bronze	UL94 V-0	1	Shrouded - 4 Wall	250 VAC 353 VDC	Tin	Square	Surface Mount	4.25 mm	0.167 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.87
		25	$ 3.50
		50	$ 3.25
		100	$ 3.09
		500	$ 2.89
