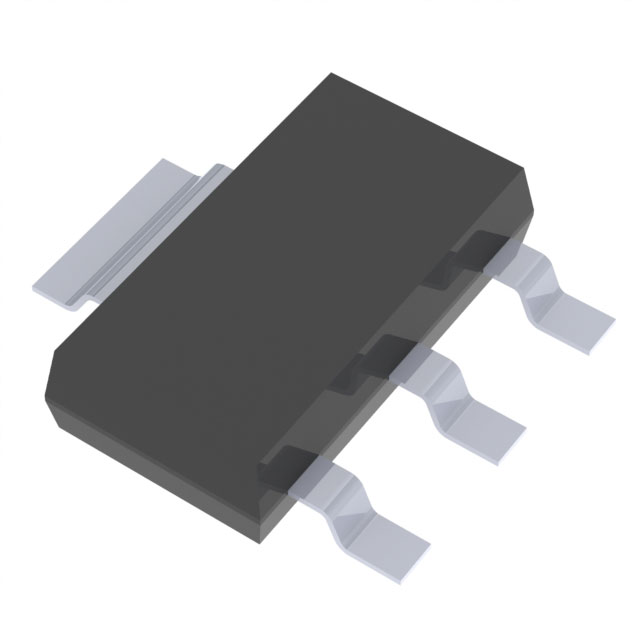

PT7M1233A-10TCEX

Obsolete

Diodes Inc

IC SUPERVISOR 1 CHANNEL SOT223-3

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC SUPERVISOR 1 CHANNEL SOT223-3

Technical Specifications

Parameters and characteristics for this part

Specification	PT7M1233A-10TCEX

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Bidirectional
Package / Case	TO-261AA, TO-261-4
Reset	Active Low
Reset Timeout [Min]	140 ms
Supplier Device Package	SOT-223-3
Type	Simple Reset/Power-On Reset
Voltage - Threshold	2.88 V

Part	Reset Timeout [Min]	Voltage - Threshold	Operating Temperature [Max]	Operating Temperature [Min]	Output	Package / Case	Reset	Type	Supplier Device Package	Number of Voltages Monitored	Mounting Type
Diodes Inc PT7M1233A-10TCEX	140 ms	2.88 V	85 °C	-40 °C	Bidirectional	TO-261-4 TO-261AA	Active Low	Simple Reset/Power-On Reset	SOT-223-3	1	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Supervisor Bidirectional 1 Channel SOT-223-3
