Description

General part information

RJF62 Series

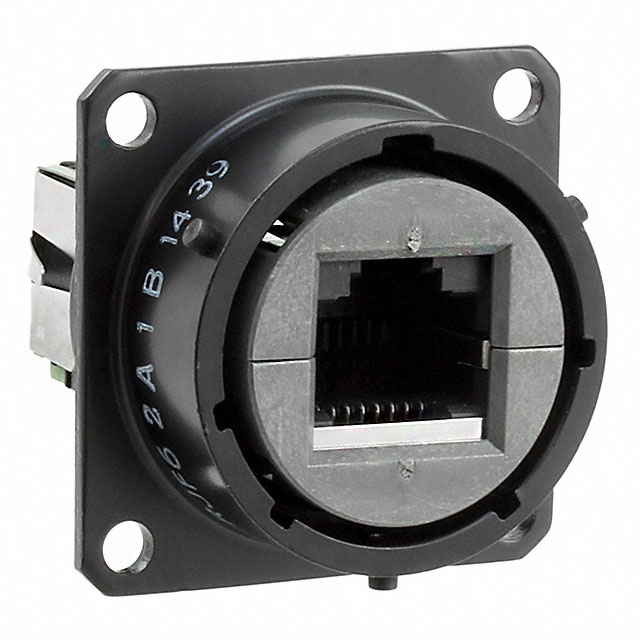

The RJF62A1B is a 8-position sealed CAT5e/6 Ethernet Adapter for harsh environment. It is used for 10 BaseT, 100 BaseTX or 1000 BaseT up to 250MHz networks in harsh environments, with the patented RJStop® system use a standard RJ45 cordset in a metallic plug which will protect it from shocks, dust and fluids.

Technical Specifications

Parameters and characteristics for this part

SpecificationRJF62A1B
Convert From (Adapter End)8p8c (RJ45), Jack
Convert To (Adapter End)Jack, 8p8c (RJ45)
FinishBlack Painted
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
Mounting TypeSquare Flange, Panel Mount
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
RatingsCat6
Shell MaterialAluminum
TypeCoupler
