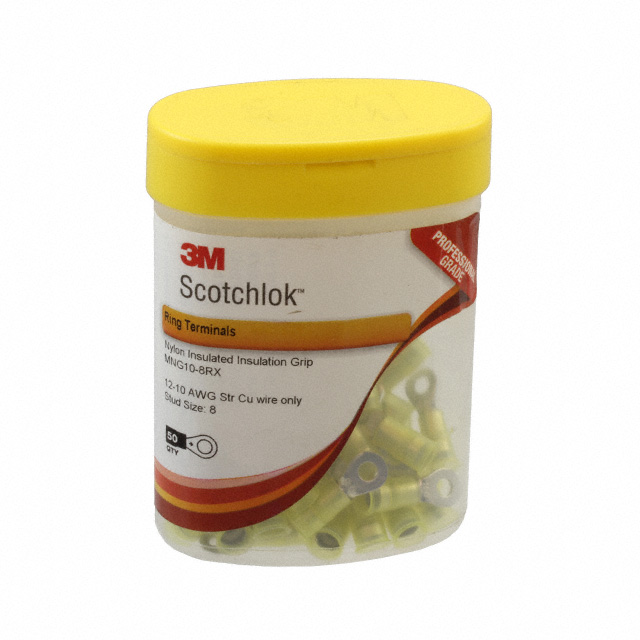

MNG10-8RX-BOTTLE
Active3M
CONN RING CIRC 10-12AWG #8 50PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MNG10-8RX-BOTTLE | MNG10 Series |
|---|---|---|
| Color | Yellow | Yellow |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper, Brass |
| Features | - | Gel Filled |
| Gender | - | Male, Female |
| Insulation | Insulated | Insulated, Non-Mating End Insulated, Fully Insulated |
| Insulation Diameter | 0.25 " | 0.25 " |
| Insulation Diameter | 6.35 mm | 6.35 mm |
| Insulation Diameter | - | 6.86 mm |
| Insulation Diameter | - | 0.27 in |
| Length - Overall | 26.16 mm | 26.16 - 30.23 mm |
| Length - Overall | - | 24.89 - 32 mm |
| Length - Overall | - | 1.19 in |
| Length - Overall [x] | 1.03 in | 0.98 - 1.26 in |
| Length - Pin | - | 13.97 mm |
| Length - Pin | - | 0.55 in |
| Length - Ring Center to Termination | - | 7.11 - 7.37 mm |
| Length - Ring Center to Termination | - | 0.28 - 0.29 in |
| Length - Termination | - | 13.97 mm |
| Length - Termination | - | 0.55 in |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | 2 |
| Pin Diameter | - | 0.11 " |
| Pin Diameter | - | 2.79 mm |
| Stud/Tab Size | 8 Stud | 8 Stud, 3/8 Stud |
| Stud/Tab Size | - | 0.25 - 10 Stud |
| Tab Thickness | - | 0.032 - 0.05 in |
| Tab Thickness | - | 0.81 - 1.27 mm |
| Tab Width | - | 6.35 - 9.53 mm |
| Tab Width | - | 0.25 - 0.375 in |
| Terminal Type | Circular | Snap, Spring, Circular, Flanged, Standard, Butt Splice, Inline, Individual Openings, Multi-Stud |
| Termination | Crimp | Crimp |
| Thickness | 0.04 in | 0.04 in |
| Thickness | 1.02 mm | 1.02 mm |
| Width - Outer Edges | - | 7.11 - 13.72 mm |
| Width - Outer Edges | - | 0.28 - 0.54 in |
| Width - Outer Edges | - | 9.91 - 13.46 mm |
| Width - Outer Edges | - | 0.39 in |
| Width - Outer Edges [x] | 9.65 mm | 9.65 mm |
| Width - Outer Edges [x] | 0.38 " | 0.38 " |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
MNG10 Series
CONN SPADE TERM 10-12AWG 10 50PC
| Part | Color | Length - Overall [x] | Length - Overall | Length - Ring Center to Termination | Length - Ring Center to Termination | Termination | Length - Termination | Length - Termination | Contact Material | Material - Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Stud/Tab Size | Insulation Diameter | Insulation Diameter | Mounting Type | Contact Finish | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Thickness | Thickness | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Tab Width | Tab Width | Gender | Tab Thickness | Tab Thickness | Number of Wire Entries | Features | Width - Outer Edges | Width - Outer Edges | Length - Overall | Pin Diameter [diameter] | Pin Diameter [diameter] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Length - Pin [x] | Length - Pin [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Yellow | 1.03 in | 26.16 mm | 7.11 mm | 0.28 in | Crimp | 13.97 mm | 0.55 in | Copper, ETP | Nylon, Polyamide (PA) | 8.13 mm | 0.32 in | Insulated | 10 Stud | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Snap, Spring | 12 AWG | 10 AWG | |||||||||||||||||||||||
Yellow | 0.98 in | Crimp | Copper, ETP | Nylon, Polyamide (PA) | 7.11 mm | 0.28 in | Insulated | 4 Stud | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Circular | 12 AWG | 10 AWG | 24.89 mm | 0.04 in | 1.02 mm | |||||||||||||||||||||||||
Yellow | 1.03 in | 26.16 mm | Crimp | Copper, ETP | Nylon, Polyamide (PA) | Insulated | 6 Stud | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Circular | 12 AWG | 10 AWG | 0.04 in | 1.02 mm | 9.65 mm | 0.38 " | |||||||||||||||||||||||||
Yellow | 1.03 in | 26.16 mm | Crimp | Copper, ETP | Nylon, Polyamide (PA) | Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Circular | 12 AWG | 10 AWG | 0.04 in | 1.02 mm | 9.65 mm | 0.38 " | 8 Stud | |||||||||||||||||||||||||
Yellow | 1.26 in | Crimp | Copper, ETP | Nylon, Polyamide (PA) | 13.72 mm | 0.54 in | Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Circular | 12 AWG | 10 AWG | 32 mm | 0.04 in | 1.02 mm | 3/8 Stud | |||||||||||||||||||||||||
Yellow | 1.03 in | 26.16 mm | 7.37 mm | 0.29 in | Crimp | 13.97 mm | 0.55 in | Copper, ETP | Nylon, Polyamide (PA) | 8.13 mm | 0.32 in | Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Flanged | 12 AWG | 10 AWG | 8 Stud | |||||||||||||||||||||||
Yellow | 1.03 in | 26.16 mm | 7.37 mm | 0.29 in | Crimp | 13.97 mm | 0.55 in | Copper, ETP | Nylon, Polyamide (PA) | Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Standard | 12 AWG | 10 AWG | 9.65 mm | 0.38 " | 8 Stud | |||||||||||||||||||||||
Yellow | 1.05 in | 26.67 mm | Crimp | Copper, ETP | Non-Mating End Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Tin | Standard | 12 AWG | 10 AWG | 6.35 mm | 0.25 in | Male | 0.032 in | 0.81 mm | ||||||||||||||||||||||||||
Yellow | Crimp | Fully Insulated | Butt Splice, Individual Openings, Inline | 12 AWG | 10 AWG | 2 | |||||||||||||||||||||||||||||||||||||
Yellow | Crimp | Fully Insulated | Butt Splice, Individual Openings, Inline | 12 AWG | 10 AWG | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 71.77 | |
Description
General part information
MNG10 Series
Ring Terminal Connector 8 Stud Circular 10-12 AWG Crimp
