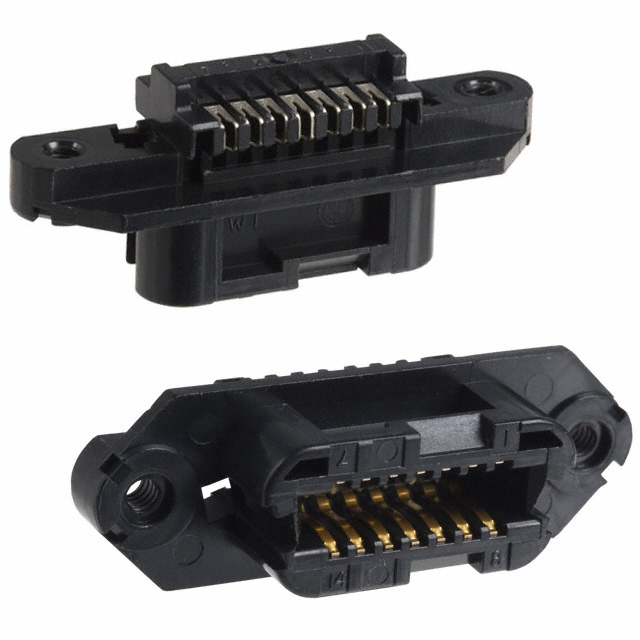

2-552271-1
ObsoleteTE Connectivity AMP Connectors
CONN IEEE 488 RCP 14 POS 2.16MM IDT RA CABLE MOUNT 14 TERMINAL 1 PORT BOX/PACKAGE/TRAY
2-552271-1
ObsoleteTE Connectivity AMP Connectors
CONN IEEE 488 RCP 14 POS 2.16MM IDT RA CABLE MOUNT 14 TERMINAL 1 PORT BOX/PACKAGE/TRAY
Description
General part information
552271 Series
14 Position Receptacle Connector Free Hanging (In-Line) IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-552271-1 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Termination | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
