SSA-LXB10GW-GF/LP

Active

Lumex Opto/Components Inc.

LED CBI 5.08X1.74MM 10SEG G VERT

Deep-Dive with AI

Search across all available documentation for this part.

SSA-LXB10GW-GF/LP

Active

Lumex Opto/Components Inc.

LED CBI 5.08X1.74MM 10SEG G VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.40
		20	$ 1.60
		100	$ 1.23
		500	$ 1.11
		1000	$ 0.96
		2000	$ 0.90
		5000	$ 0.88
		10000	$ 0.87

Description

General part information

SSA-LXB10 Series

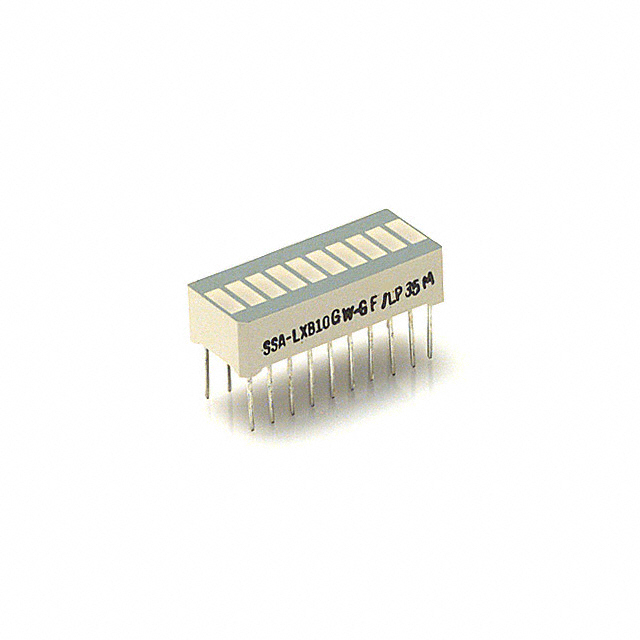

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 10) Diffused, White 2.2V 25mA Rectangle with Flat Top 5.08mm x 1.74mm Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSA-LXB10GW-GF/LP	SSA-LXB10 Series

Color	Green (x 10)	Green (x 10), Red (x 10), Green, Yellow, Red
Configuration	10 Wide	10 Wide
Configuration	DIP, Bar	DIP, Bar, Bar - 10 Curved, SIP, 10 Wide
Configuration	-	10
Current	25 mA	10 - 150 mA
Current	-	20mA Green, 20mA Yellow, 20mA Red
Lens Size [x]	5.08 mm	5 - 5.3 mm
Lens Size [y]	1.74 mm	1.74 - 1.8 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Diffused, White	Diffused, White, Tinted
Millicandela Rating	8 mcd	0.75 - 80 mcd
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Viewing Angle	160 °	160 °
Voltage Rating	-	1.7 - 2.35 V
Wavelength - Peak	565 nm	565 - 700 nm

SSA-LXB10 Series

LED CBI 5X1.74MM 10-SEG GRN VERT

Part	Lens Type	Lens Size [x]	Lens Size [y]	Lens Style	Configuration	Configuration	Wavelength - Peak	Current	Millicandela Rating	Viewing Angle	Color	Mounting Type	Voltage Rating	Configuration [y]	Current
Lumex Opto/Components Inc. SSA-LXB10GW-GF	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	565 nm	25 mA	8 mcd	160 °	Green (x 10)	Through Hole
Lumex Opto/Components Inc. SSA-LXB10IW-GF	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	635 nm	30 mA	8 mcd	160 °	Red (x 10)	Through Hole	2 V
Lumex Opto/Components Inc. SSA-LXB10SRW-10652	Diffused, White			Rectangle with Flat Top		Bar - 10 Curved, DIP	660 nm	30 mA	20 mcd	160 °	Red (x 10)	Through Hole	1.7 V
Lumex Opto/Components Inc. SSA-LXB10HW-GF	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	700 nm	30 mA	4 mcd	160 °	Red (x 10)	Through Hole	2.1 V
Lumex Opto/Components Inc. SSA-LXB10GW-RA	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	565 nm		8 mcd	160 °	Green	Through Hole
Lumex Opto/Components Inc. SSA-LXB10HW-GF/LP	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	700 nm	10 mA	0.75 mcd	160 °	Red (x 10)	Through Hole	2.35 V
Lumex Opto/Components Inc. SSA-LXB10YW-RA	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top		Bar, SIP	585 nm	30 mA	8 mcd	160 °	Yellow	Through Hole, Right Angle	2.1 V	10
Lumex Opto/Components Inc. SSA-LXB10G5Y4I1WLP	Diffused	5.3 mm	1.8 mm	Rectangle with Flat Top	10 Wide	Bar, DIP	565 nm, 585 nm, 635 nm		8 mcd, 8 mcd, 8 mcd	160 °	Green, Red, Yellow	Through Hole	2 V, 2 V, 2.2 V		20mA Green, 20mA Red, 20mA Yellow
Lumex Opto/Components Inc. SSA-LXB10SIW-CUR	Diffused, White					Bar - 10 Curved, DIP	636 nm	150 mA	80 mcd	160 °	Red (x 10)	Through Hole	2 V
Lumex Opto/Components Inc. SSA-LXB10IW-RA	Diffused, White	5 mm	1.74 mm	Rectangle with Flat Top		Bar, SIP	635 nm	30 mA	12 mcd	160 °	Red (x 10)	Through Hole, Right Angle	2 V	10
