Q-2C05A0005006i

Active

Amphenol Custom Cable

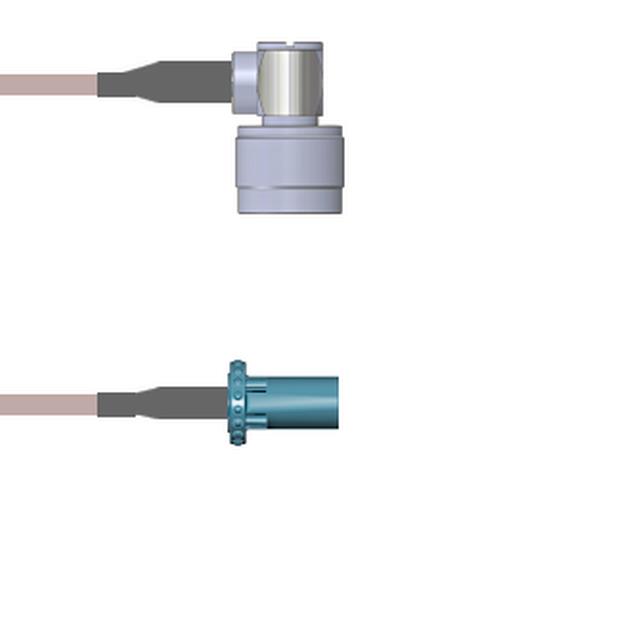

CBL ASSY NTYPE-FAKRA PLUG-PLG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C05A0005006i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA PLUG-PLG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C05A0005006i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-2C05A0 Series

Part	Cable Type	Overall Impedance	2nd Connector Mounting Type	2nd Connector	Features	1st Contact Gender	Style	Frequency - Max [Max]	1st Connector	Length	Length	Color	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-2C05A0003003i	RG-174	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	3 in	76.2 mm	Black	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2C05A0005.25M	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle			Copper	Free Hanging (In-Line)	Male	9.843 "	250 mm
Amphenol Custom Cable Q-2C05A0005024i	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	24 "	609.6 mm	Copper	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2C05A0005084i	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	84 in	2.1 m	Copper	Free Hanging (In-Line)	Male			7 ft
Amphenol Custom Cable Q-2C05A0005.75M	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	29.53 "	750 mm	Copper	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2C05A0003018i	RG-174	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle			Black	Free Hanging (In-Line)	Male		457.2 mm		457.2 mm
Amphenol Custom Cable Q-2C05A0005006i	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	6 in	152.4 mm	Copper	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2C05A0003003M	RG-174	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	118.1 in	3 m	Black	Free Hanging (In-Line)	Male			9.8 '
Amphenol Custom Cable Q-2C05A0005009i	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	9 "	228.6 mm	Copper	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-2C05A0005002M	RG-316	50 Ohms	Free Hanging (In-Line)	Fakra Plug	Shielded	Male	N-Type to Fakra	3 GHz	N-Type Plug Right Angle	78.7 in	2 m	Copper	Free Hanging (In-Line)	Male			6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 56.52
		25	$ 55.43
		50	$ 54.34
		100	$ 53.25
		250	$ 52.16

Description

General part information

Q-2C05A0 Series

Cable Assembly Coaxial N-Type to Fakra RG-316 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
