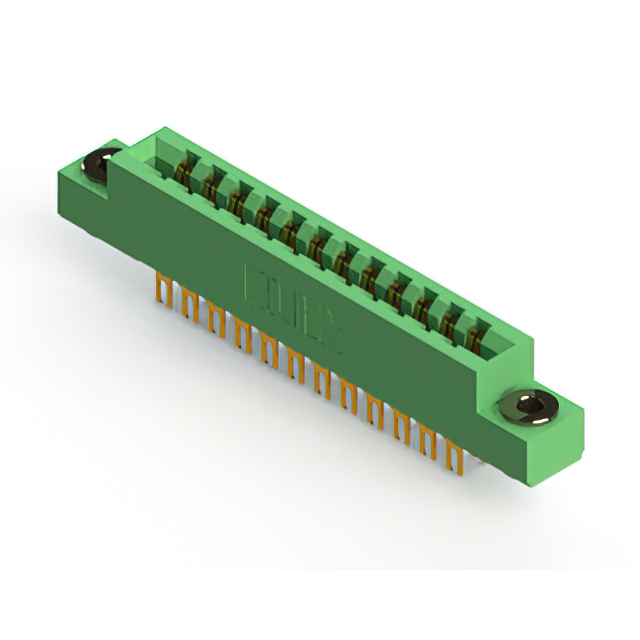

305-024-500-503
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
305-024-500-503
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-024-500-503 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
305-024 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Rows | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Termination | Features | Contact Type | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Number of Positions | Card Type | Gender | Termination Rows | Color | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder | Card Extender | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder | Card Extender | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder Eyelet(s) | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | ||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder Eyelet(s) | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | ||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Free Hanging (In-Line) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder Eyelet(s) | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | ||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder Eyelet(s) | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | ||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Dual | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Solder | Card Extender | Semi Bellows | 12 | 0.156 in | 3.96 mm | 24 | Non Specified - Dual Edge | Female | 2 | Green | Gold | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.28 | |
Description
General part information
305-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
