73087-210-4

Active

Pomona Electronics

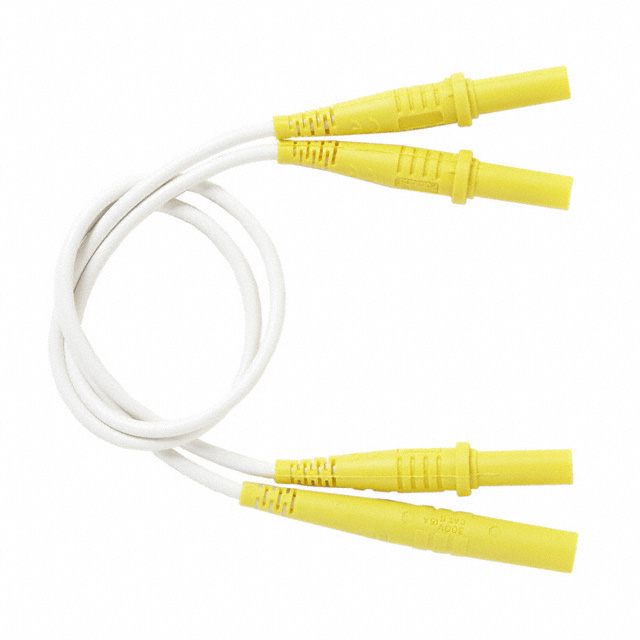

TEST LEAD BANANA TO BANANA 210"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

73087-210-4

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 210"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	73087-210-4

1st Connector	Sheathed, Single, Banana Plug
2nd Connector	Banana Socket (Jack), Sheathed, Single, Banana Plug
Cable Length	5334 mm
Cable Length	210 in
Configuration	Banana to Banana
Contents	2 Leads, Yellow
Current Rating (Amps)	10 A
Material - Insulation	Silicone
Ratings	CAT I
Ratings	1000 V
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	1000 VAC
Voltage - Rated	1 kV
Wire Gauge	18 AWG

73087 Series

Part	Wire Gauge	Contents	Current Rating (Amps)	1st Connector	Stacking Method	Ratings	Ratings	Cable Length	Cable Length	Type	2nd Connector	Material - Insulation	Configuration	Voltage - Rated	Voltage - Rated	Contents	Cable Length [x]	Cable Length [x]
Pomona Electronics 73087-24-2	18 AWG	2 Leads Red	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	24 "	609.6 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV
Pomona Electronics 73087-24-6	18 AWG	Blue	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	24 "	609.6 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV	2 Leads
Pomona Electronics 73087-12-0	18 AWG	Black	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	12 in	304.8 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV	2 Leads
Pomona Electronics 73087-24-4	18 AWG	2 Leads Yellow	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	24 "	609.6 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV
Pomona Electronics 73087-6-4	18 AWG	2 Leads Yellow	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V			Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV		6 in	152.4 mm
Pomona Electronics 73087-12-4	18 AWG	2 Leads Yellow	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	12 in	304.8 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV
Pomona Electronics 73087-210-4	18 AWG	2 Leads Yellow	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	210 in	5334 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV
Pomona Electronics 73087-72-0	18 AWG	Black	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	72 in	1828.8 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV	2 Leads
Pomona Electronics 73087-36-0	18 AWG	Black	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V	36 in	914.4 mm	Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV	2 Leads
Pomona Electronics 73087-6-6	18 AWG	Blue	10 A	Banana Plug Sheathed Single	Non Stackable	CAT I	1000 V			Patch Cord	Banana Plug Banana Socket (Jack) Sheathed Single	Silicone	Banana to Banana	1000 VAC	1 kV	2 Leads	6 in	152.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 60.69
		25	$ 58.64

Description

General part information

73087 Series

210.0" (5334.00mm) Banana Plug, Single, Sheathed To Banana Plug, Single, Sheathed, Banana Socket (Jack), Single Patch Cord 1000VAC (1kV)

Documents

Technical documentation and resources
