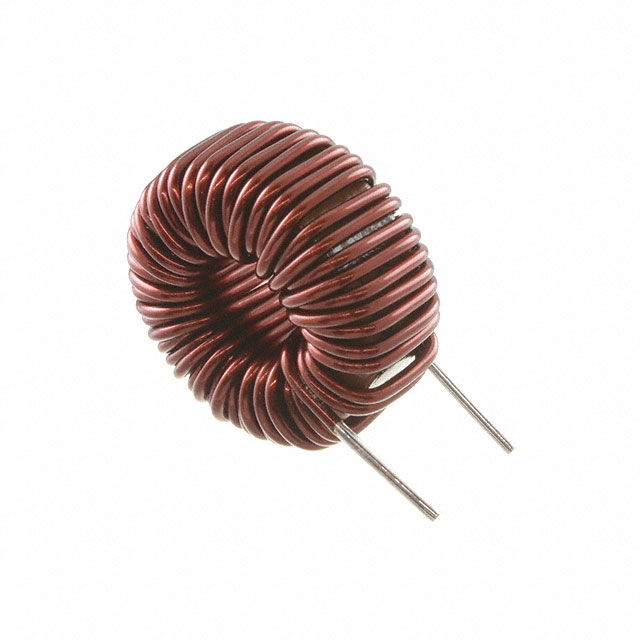

HHBC13-1R2A0127V
ActiveKEMET
CMC 127UH 6A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
HHBC13-1R2A0127V
ActiveKEMET
CMC 127UH 6A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HHBC13-1R2A0127V |
|---|---|
| Current Rating (Max) [Max] | 6 A |
| DC Resistance (DCR) (Max) [Max] | 31.7 mOhm |
| Height (Max) | 30 mm |
| Height (Max) [Max] | 1.181 in |
| Inductance @ Frequency | 127 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Vertical, No Base |
| Package / Case | 2 Lead |
| Size / Dimension [diameter] | 30 mm |
| Size / Dimension [diameter] | 1.181 inches |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.43 | |
| 10 | $ 4.43 | |||
| 25 | $ 4.09 | |||
| 50 | $ 3.84 | |||
Description
General part information
HHBC13 Series
127 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 6A DCR 31.7mOhm
