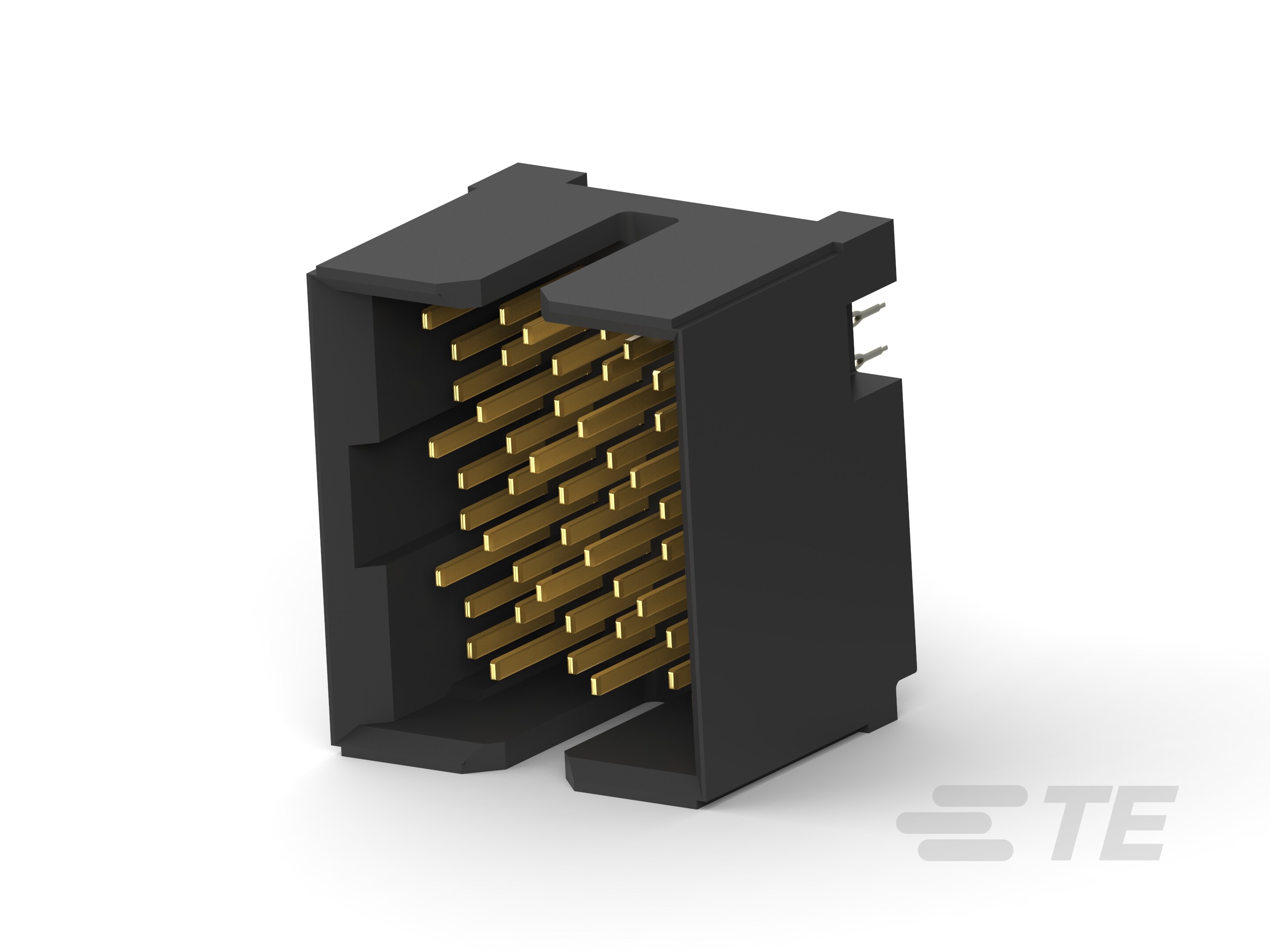

Specification	1934338-1

Color	Black
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Current Rating	0.5 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-65 °C
Pitch	0.075 in
Termination	Press-Fit
Voltage Rating	250 V

1934338 Series

Part	Number of Positions Loaded	Color	Pitch	Number of Rows	Number of Positions	Contact Finish	Number of Columns	Contact Finish Thickness	Termination	Connector Type	Mounting Type	Material Flammability Rating	Voltage Rating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)
TE Connectivity AMP Connectors 1934338-1	All	Black	0.075 in	9	54	Gold	6	30 µin	Press-Fit	Header Male Pins	Through Hole	UL94 V-0	250 V	0.5 A	90 °C	-65 °C
