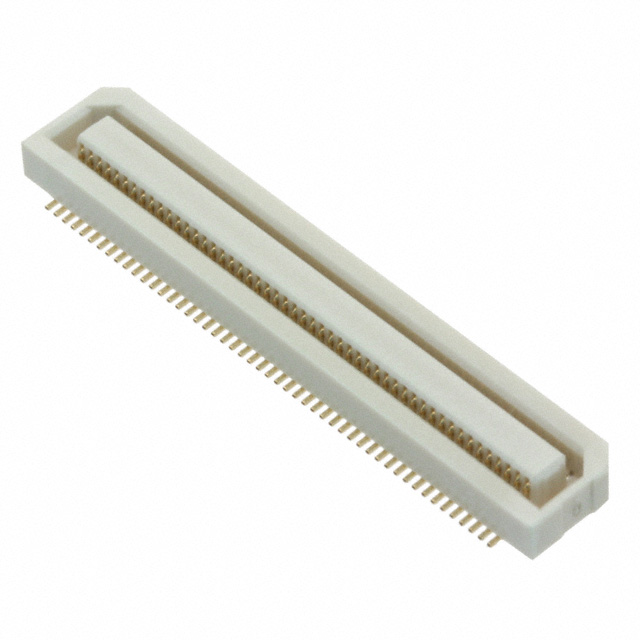

AXK550147YG

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK550147YG

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Height Above Board	2.16 mm
Height Above Board	0.085 in
Mated Stacking Heights	3 mm, 3.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Mounting Type	Number of Positions	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish
Panasonic Electric Works AXK550147YG	Socket Center Strip Contacts	Surface Mount	50	2	2.16 mm	0.085 in	3 mm 3.5 mm	0.5 mm	0.02 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.00
	Digi-Reel®	1	$ 3.00
	Tape & Reel (TR)	1500	$ 1.68

General part information

50 Position Connector Socket, Center Strip Contacts Surface Mount Gold
