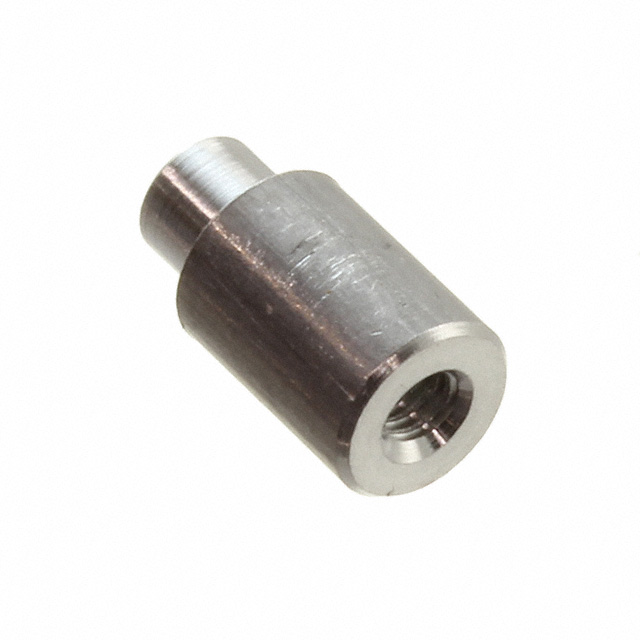

3702-B-256-AL
ActiveRAF Electronic Hardware
3/16 RD X 1/4 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
3702-B-256-AL
ActiveRAF Electronic Hardware
3/16 RD X 1/4 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3702-B-256-AL |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Diameter - Inside [diameter] | 2.62 mm |
| Diameter - Inside [diameter] | 0.103 in |
| Diameter - Outside [diameter] | 4.76 mm |
| Diameter - Outside [diameter] | 0.188 " |
| Gender | Swage, Female |
| Length - Overall [x] | 0.355 in |
| Length - Overall [x] | 9.02 mm |
| Material | Aluminum |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.98 | |
| 5 | $ 2.53 | |||
| 10 | $ 2.37 | |||
| 25 | $ 2.19 | |||
| 50 | $ 2.07 | |||
| 100 | $ 1.96 | |||
| 250 | $ 1.83 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.68 | |||
Description
General part information
3702-B Series
Round Standoff Threaded #2-56 Aluminum 0.250" (6.35mm) 1/4"
Documents
Technical documentation and resources
No documents available
