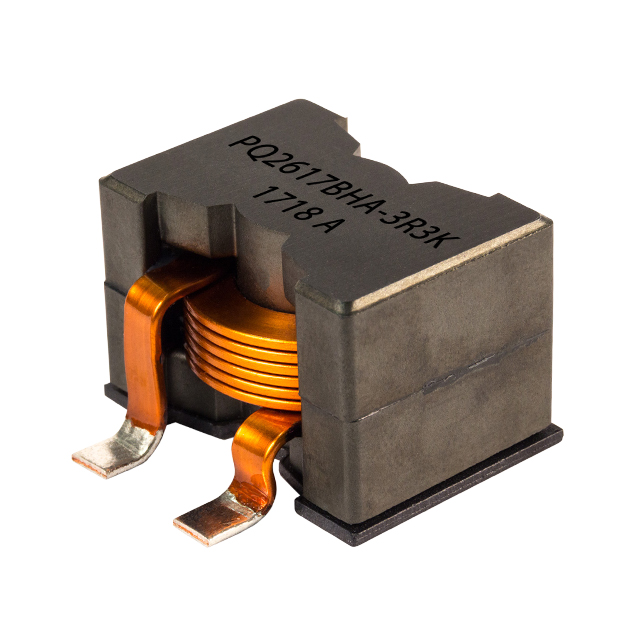

PQ2617BHA-220K
ActiveBourns Inc.
FIXED IND 22UH 28A 2.5 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PQ2617BHA-220K
ActiveBourns Inc.
FIXED IND 22UH 28A 2.5 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ2617BHA-220K |
|---|---|
| Current - Saturation (Isat) | 14 A |
| Current Rating (Amps) | 28 A |
| DC Resistance (DCR) [Max] | 2.5 mOhm |
| Frequency - Self Resonant | 15 MHz |
| Height - Seated (Max) [Max] | 19 mm |
| Height - Seated (Max) [Max] | 0.748 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 1.098 in |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [y] | 19.8 mm |
| Size / Dimension [y] | 0.78 in |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.32 | |
| 10 | $ 3.61 | |||
| 25 | $ 3.30 | |||
| 50 | $ 2.82 | |||
| 100 | $ 2.59 | |||
| 250 | $ 2.51 | |||
| 450 | $ 2.43 | |||
| 950 | $ 2.28 | |||
| 2400 | $ 2.20 | |||
Description
General part information
PQ2617BHA Series
22 µH Shielded Drum Core, Wirewound Inductor 28 A 2.5mOhm Max Nonstandard
