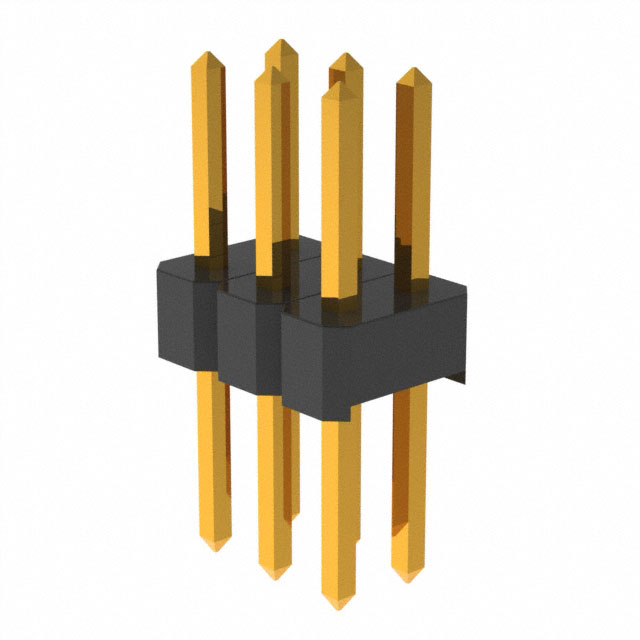

PRPC003DABN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
PRPC003DABN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC003DABN-RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post | 0.23 in |
| Contact Length - Post | 5.84 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 0.558 in |
| Overall Contact Length | 14.18 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC003 Series
| Part | Style | Contact Finish Thickness - Mating | Contact Type | Contact Length - Mating [x] | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Shrouding | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Contact Material | Contact Finish - Post | Contact Finish Thickness - Post | Number of Rows | Number of Positions | Connector Type | Number of Positions Loaded | Fastening Type | Termination | Contact Finish - Mating | Material Flammability Rating | Current Rating (Amps) | Insulation Color | Insulation Height [z] | Insulation Height [z] | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Mating [x] | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Board to Board Cable | Flash | Male Pin | 0.23 in | 5.84 mm | 0.23 in | 5.84 mm | Unshrouded | 0.558 in | 14.18 mm | 0.1 in | 2.54 mm | Brass | Gold | Flash | 2 | 6 | Breakaway Header | All | Push-Pull | Solder | Gold | UL94 V-0 | 3 A | Black | 0.098 in | 2.5 mm | Square | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Through Hole | Polybutylene Terephthalate (PBT) | ||||
Sullins Connector Solutions | Board to Board Cable | Flash | Male Pin | 0.23 in | 5.84 mm | Unshrouded | 0.648 in | 16.47 mm | 0.1 in | 2.54 mm | Brass | Gold | Flash | 1 | Breakaway Header | All | Push-Pull | Solder | Gold | UL94 V-0 | 3 A | Black | 0.098 in | 2.5 mm | Square | -40 °C | 105 ░C | Through Hole | Polybutylene Terephthalate (PBT) | 0.32 in | 8.13 mm | |||||||
Sullins Connector Solutions | Board to Board Cable | Flash | Male Pin | 0.23 in | 5.84 mm | Unshrouded | 0.1 in | 2.54 mm | Brass | Gold | Flash | 1 | Breakaway Header | All | Push-Pull | Solder | Gold | UL94 V-0 | 3 A | Black | 0.098 in | 2.5 mm | Square | -40 °C | 105 ░C | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | 0.32 in | 8.13 mm | |||||||||
Sullins Connector Solutions | Board to Board Cable | Flash | Male Pin | 0.318 " | Unshrouded | 0.1 in | 2.54 mm | Brass | Gold | Flash | 1 | Breakaway Header | All | Push-Pull | Solder | Gold | UL94 V-0 | 3 A | Black | 0.098 in | 2.5 mm | Square | -40 °C | 105 ░C | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | 0.12 in | 3.05 mm | 8.08 mm | |||||||||
Sullins Connector Solutions | Board to Board Cable | Flash | Male Pin | 0.23 in | 5.84 mm | 0.22 in | 5.58 mm | Unshrouded | 0.1 in | 2.54 mm | Brass | Gold | Flash | 1 | Breakaway Header | All | Push-Pull | Solder | Gold | UL94 V-0 | 3 A | Black | 0.098 in | 2.5 mm | Square | -40 °C | 105 ░C | Through Hole Right Angle | Polybutylene Terephthalate (PBT) | |||||||||
Sullins Connector Solutions | Board to Board Cable | Flash | Male Pin | 0.318 " | Unshrouded | 0.537 " | 0.1 in | 2.54 mm | Brass | Gold | Flash | 1 | Breakaway Header | All | Push-Pull | Solder | Gold | UL94 V-0 | 3 A | Black | 0.098 in | 2.5 mm | Square | -40 °C | 105 ░C | Through Hole | Polybutylene Terephthalate (PBT) | 0.12 in | 3.05 mm | 8.08 mm | 13.63 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
Description
General part information
PRPC003 Series
Connector Header Through Hole 6 position 0.100" (2.54mm)
