SJG.1B.314.CLAPV

Active

LEMO

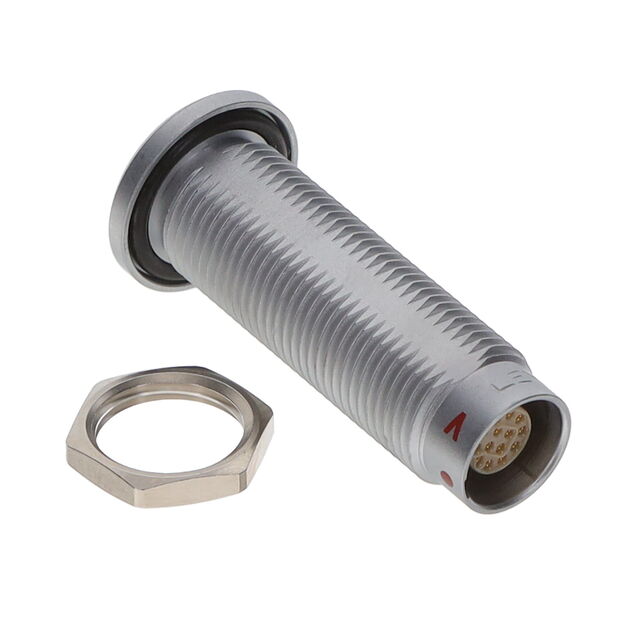

CONN ADAPTER 14P-14P F-M PNL MNT

Search across all available documentation for this part.

Active

LEMO

CONN ADAPTER 14P-14P F-M PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Standard 14/14 Female Sockets/Male Pins Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SJG.1B.314.CLAPV	SJG.1B Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets	Female Sockets
Convert To (Adapter End)	Male Pins	Male Pins
Current Rating (Amps)	2 A	2 - 9 A
Fastening Type	Push-Pull	Push-Pull
Features	Mounting Hardware, Vacuumtight	Mounting Hardware, Vacuumtight
Housing Color	Silver	Silver
Housing Finish	Chrome	Chrome
Housing Material	Brass	Brass
Includes	1 Adapter, 1 Nut	1 Adapter, 1 Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	14	5 - 14
Number of Positions (Convert To)	14	5 - 14
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation (Convert From)	J	J
Orientation (Convert To)	G	G
Shell Size - Insert (Convert From)	314	305 - 314
Shell Size - Insert (Convert To)	-	306
Shell Size - Insert (Convert To)	-	310
Shell Size - Insert (Convert To) [custom]	314	314
Shielding	Shielded	Shielded

CONN ADAPTER 14P-14P F-M PNL MNT

Part	Number of Positions (Convert To)	Current Rating (Amps)	Shielding	Includes	Orientation (Convert To)	Convert To (Adapter End)	Housing Finish	Fastening Type	Orientation (Convert From)	Connector Style	Mounting Feature	Shell Size - Insert (Convert From)	Housing Material	Housing Color	Convert From (Adapter End)	Ingress Protection	Number of Positions (Convert From)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert (Convert To) [custom]	Features	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert To) [custom]
LEMO SJG.1B.314.CLAPV	14	2 A	Shielded	1 Adapter, 1 Nut	G	Male Pins	Chrome	Push-Pull	J	Standard	Bulkhead - Rear Side Nut	314	Brass	Silver	Female Sockets	IP68 - Dust Tight, Waterproof	14	100 °C	-20 C	314	Mounting Hardware, Vacuumtight
LEMO SJG.1B.305.CLAPV	5	9 A	Shielded	1 Adapter, 1 Nut	G	Male Pins	Chrome	Push-Pull	J	Standard	Bulkhead - Rear Side Nut	305	Brass	Silver	Female Sockets	IP68 - Dust Tight, Waterproof	5	100 °C	-20 C		Mounting Hardware, Vacuumtight
LEMO SJG.1B.306.CLAPV	6	7 A	Shielded	1 Adapter, 1 Nut	G	Male Pins	Chrome	Push-Pull	J	Standard	Bulkhead - Rear Side Nut	306	Brass	Silver	Female Sockets	IP68 - Dust Tight, Waterproof	6	100 °C	-20 C		Mounting Hardware, Vacuumtight	306
LEMO SJG.1B.310.CLAPV	10	2.5 A	Shielded	1 Adapter, 1 Nut	G	Male Pins	Chrome	Push-Pull	J	Standard	Bulkhead - Rear Side Nut	310	Brass	Silver	Female Sockets	IP68 - Dust Tight, Waterproof		100 °C	-20 C		Mounting Hardware, Vacuumtight		310
