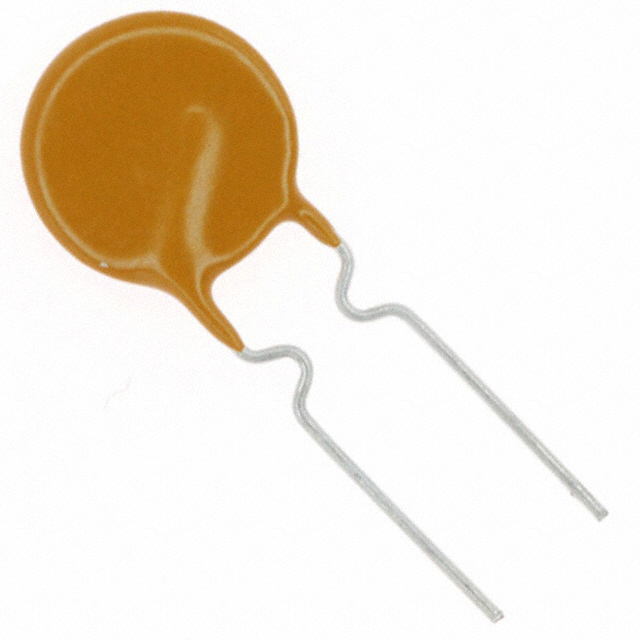

MF-R160-0-99

Obsolete

Bourns Inc.

PTC RESET FUSE 30V 1.6A RADIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 30V 1.6A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R160-0-99

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.6 A
Current - Max [Max]	40 A
Current - Trip (It)	3.2 A
Height - Seated (Max) [Max]	16.8 mm
Height - Seated (Max) [Max]	0.661 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	55 mOhms
Resistance - Post Trip (R1) (Max) [Max]	150 mOhms
Size / Dimension [custom]	0.118 "
Size / Dimension [custom]	3 mm
Size / Dimension [diameter]	10.2 mm
Size / Dimension [diameter]	0.402 in
Time to Trip	8 s
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Type	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Time to Trip	Lead Spacing	Lead Spacing	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Current - Max [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [diameter]	Voltage - Max [Max]
Bourns Inc. MF-R160-0-99	Polymeric	1.6 A	55 mOhms	Through Hole	cURus TUV	85 °C	-40 °C	16.8 mm	0.661 "	8 s	5.1 mm	0.201 in	150 mOhms	3.2 A	40 A	Disc Radial	10.2 mm	0.118 "	3 mm	0.402 in	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 30V 1.6 A Ih Through Hole Radial, Disc
