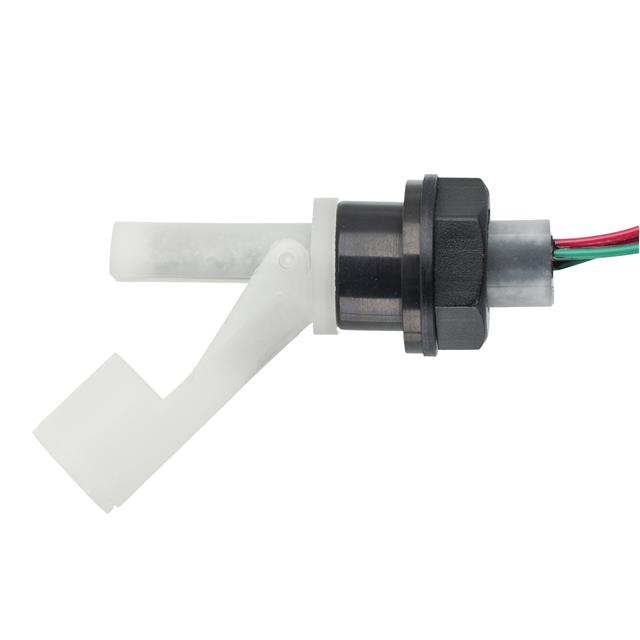

TSF74H100DN

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	TSF74H100DN

Current	1 A
Material - Housing & Prism	Polypropylene (PP)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Output Configuration	SPST-NC/NO
Switch Actuation Level	8 mm, 20 mm
Switch Actuation Level	0.4641 ", 0.3149 "
Type	Liquid, Temperature
Voltage Rating	300 VDC, 300 VAC

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Output Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current	Material - Housing & Prism	Minimum Liquid Specific Gravity [Min]	Switch Actuation Level	Switch Actuation Level	Voltage Rating	Type
Sensata Technologies TSF74H100DN	SPST-NC/NO	M16x2 Thread, Panel Mount	100 °C	-20 C	1 A	Polypropylene (PP)	0.85	8 mm, 20 mm	0.3149 ", 0.4641 "	300 VDC, 300 VAC	Liquid, Temperature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.86

General part information

Liquid, Temperature Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
