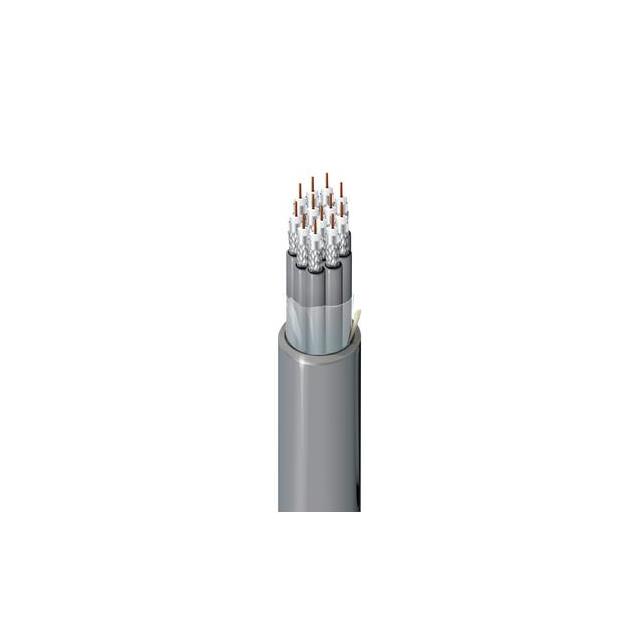

734A12 0081000

Active

Belden Inc.

12 #20 PE/FHDPE SH PVC FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

12 #20 PE/FHDPE SH PVC FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	734A12 0081000

Cable Group	RG-59
Cable Type	Multi-Conductor - Riser
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.75 mm
Dielectric Diameter [diameter]	0.148 in
Jacket (Insulation) Diameter [diameter]	27.18 mm
Jacket (Insulation) Diameter [diameter]	1.07 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 85 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Datacom
VoP, Velocity of Propagation	82
Wire Gauge	20 AWG

Part	Length	Length	Shield Coverage	VoP, Velocity of Propagation	Shield Material	Wire Gauge	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Strand	Cable Group
Belden Inc. 734A12 0081000	304.8 m	1000 ft	85 % 100 %	82	Aluminum Polyester Copper Tinned	20 AWG	Braid Foil	27.18 mm	1.07 in	Copper Bare	Datacom	3.75 mm	0.148 in	Gray	Poly-Vinyl Chloride (PVC)	-30 ░C	75 ░C	Multi-Conductor - Riser	Solid	RG-59

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 11.65

General part information

Multi-Conductor - Riser Cable 20 AWG RG-59 1000.0' (304.80m)
