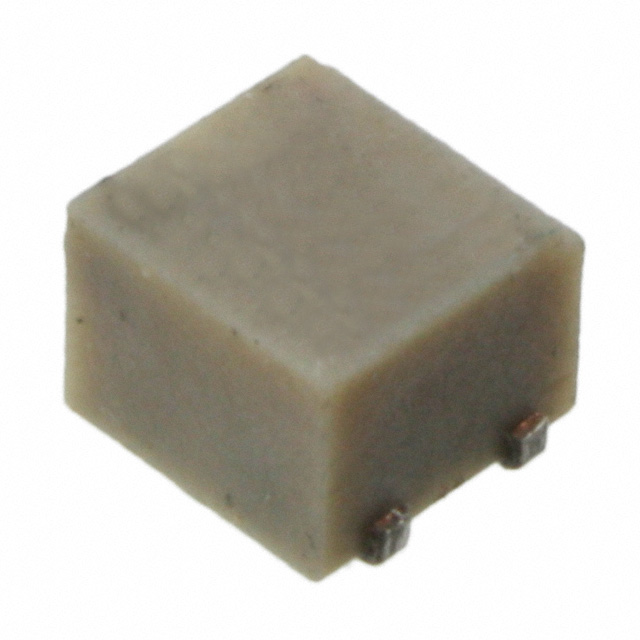

44JR5KLFT7

Active

TT Electronics/BI

TRIMMER 5K OHM 0.25W J LEAD SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

44JR5KLFT7

Active

TT Electronics/BI

TRIMMER 5K OHM 0.25W J LEAD SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	44JR5KLFT7	44JR Series

Adjustment Type	Side Adjustment	Side Adjustment
Mounting Type	Surface Mount	Surface Mount
Number of Turns	9	9
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Resistance	5 kOhms	1 - 10000 Ohms
Resistive Material	Cermet	Cermet
Size / Dimension [x]	0.19 "	0.19 - 0.198 "
Size / Dimension [x]	4.83 mm	4.83 - 5.03 mm
Size / Dimension [y]	4.57 mm	4.57 - 4.83 mm
Size / Dimension [y]	0.18 in	0.18 - 0.19 in
Temperature Coefficient	100 ppm/°C	100 - 250 ppm/°C
Termination Style	J Lead	J Lead, Gull Wing
Tolerance	10 %	10 - 20 %

44JR Series

TRIMMER 1K OHM 0.25W J LEAD SIDE

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Power (Watts)	Power (Watts)	Number of Turns	Resistive Material	Termination Style	Temperature Coefficient	Tolerance	Adjustment Type	Resistance
TT Electronics/BI 44JR1KLFT7	4.57 mm	0.19 "	4.83 mm	0.18 in	Surface Mount	0.25 W	250 mW	9	Cermet	J Lead	100 ppm/°C	10 %	Side Adjustment	1000 Ohms
TT Electronics/BI 44JR100KLFTB	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	100 kOhms
TT Electronics/BI 44JR5KLFT13	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	5 kOhms
TT Electronics/BI 44JR5KLFT7	4.57 mm	0.19 "	4.83 mm	0.18 in	Surface Mount	0.25 W	250 mW	9	Cermet	J Lead	100 ppm/°C	10 %	Side Adjustment	5 kOhms
TT Electronics/BI 44JR10KLFT7	4.57 mm	0.19 "	4.83 mm	0.18 in	Surface Mount	0.25 W	250 mW	9	Cermet	J Lead	100 ppm/°C	10 %	Side Adjustment	10000 Ohms
TT Electronics/BI 44JR100KLFT7	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	100 kOhms
TT Electronics/BI 44JR100LFT7	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	100 Ohms
TT Electronics/BI 44JR20KLFT7	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	20 kOhms
TT Electronics/BI 44JR25KLFTB	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	25 kOhms
TT Electronics/BI 44JR10KLFT13	4.83 mm	0.198 "	5.03 mm	0.19 in	Surface Mount	0.25 W	250 mW	9	Cermet	Gull Wing	100 ppm/°C	10 %	Side Adjustment	10000 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.45
	Digi-Reel®	1	$ 5.45
	Tape & Reel (TR)	500	$ 2.91

Description

General part information

44JR Series

5 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 9.0 Turn Side Adjustment
