SQT-116-03-L-D

Active

Samtec Inc.

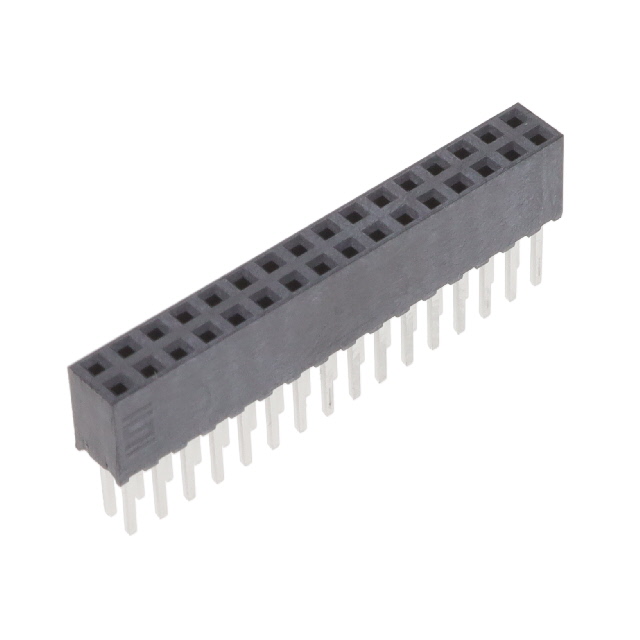

CONN RCPT 32POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cost Effective Rugged PCB Sockets, 2.00mm pitch +2

SQT-116-03-L-D

Active

Samtec Inc.

CONN RCPT 32POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet Cost Effective Rugged PCB Sockets, 2.00mm pitch +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQT-116-03-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	5.28 mm
Contact Length - Post	0.208 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

SQT-116 Series

Part	Contact Material	Contact Finish - Mating	Number of Positions	Mounting Type	Style	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Shape	Contact Finish - Post	Contact Type	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Number of Rows	Termination	Connector Type	Number of Positions Loaded	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish Thickness - Mating
Samtec Inc. SQT-116-01-LM-S	Phosphor Bronze	Gold	16	Through Hole	Board to Board Cable	UL94 V-0	0.09 "	2.29 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	1	Solder	Receptacle	All	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	0.079 in	2 mm
Samtec Inc. SQT-116-01-H-Q	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.09 "	2.29 mm	5.1 A	Square	Gold	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black		Solder	Receptacle	All	Push-Pull	-55 °C	125 °C	50 µin	1.27 µm	0.079 in	2 mm	0.079 in	2 mm	64	3 µin	0.076 µm
Samtec Inc. SQT-116-03-L-D	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.208 in	5.28 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	2	Solder	Receptacle	All	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	0.079 in	2 mm	0.079 in	2 mm
Samtec Inc. SQT-116-01-L-D-002	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.09 "	2.29 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	2	Solder	Receptacle		Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	0.079 in	2 mm	0.079 in	2 mm				31
Samtec Inc. SQT-116-03-L-T	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.208 in	5.28 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	3	Solder	Receptacle	All	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	0.079 in	2 mm	0.079 in	2 mm	48
Samtec Inc. SQT-116-03-F-D	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.208 in	5.28 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	2	Solder	Receptacle	All	Push-Pull	-55 °C	125 °C			0.079 in	2 mm	0.079 in	2 mm					Flash
Samtec Inc. SQT-116-02-L-Q	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.6 in	15.24 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black		Solder	Receptacle	All	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	0.079 in	2 mm	0.079 in	2 mm	64
Samtec Inc. SQT-116-01-FM-D	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.09 "	2.29 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	2	Solder	Receptacle	All	Push-Pull	-55 °C	125 °C			0.079 in	2 mm	0.079 in	2 mm					Flash
Samtec Inc. SQT-116-01-L-D-010	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.09 "	2.29 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	2	Solder	Receptacle		Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	0.079 in	2 mm	0.079 in	2 mm				31
Samtec Inc. SQT-116-02-F-5	Phosphor Bronze	Gold		Through Hole	Board to Board Cable	UL94 V-0	0.6 in	15.24 mm	5.1 A	Square	Tin	Forked	Liquid Crystal Polymer (LCP)	6.35 mm	0.25 in	Black	5	Solder	Receptacle	All	Push-Pull	-55 °C	125 °C			0.079 in	2 mm	0.079 in	2 mm	80				Flash
