Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ76930EVM | BQ76930 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Fault Protection | - | Over Current, Short Circuit, Over/Under Voltage |
| Function | Battery Monitor | Battery Monitor |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 6 |
| Number of Cells | - | 10 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 30-TFSOP |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 30-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ76930 | BQ76930 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Box | 1 | $ 298.80 | |
| Digikey | Box | 1 | $ 298.80 | |
| Mouser Electronics | N/A | 1 | $ 298.80 | |
| Newark | Bulk | 1 | $ 308.92 | |
| 10 | $ 301.68 | |||
BQ76930 Series
6 TO 10-SERIES CELL LI-ION AND LI-PHOSPHATE BATTERY MONITOR (BQ76940 FAMILY)
| Part | Interface | Supplier Device Package | Function | Fault Protection | Battery Chemistry | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cells [Min] [custom] | Number of Cells [Max] [custom] | Supplied Contents | Utilized IC / Part | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ7693006DBT | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693007DBT | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693007DBTR | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ76930EVM | Battery Monitor | Board(s) | BQ76930 | Power Management | ||||||||||
Texas Instruments BQ7693000DBTR | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693001DBT | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693006DBTR | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693001DBTR | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693002DBT | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693003DBT | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693003DBTR | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693002DBTR | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 | |||
Texas Instruments BQ7693000DBT | I2C | 30-TSSOP | Battery Monitor | Over Current, Over/Under Voltage, Short Circuit | Multi-Chemistry | 30-TFSOP | Surface Mount | 85 °C | -40 °C | 6 | 10 |
Description
General part information
BQ76930 Series

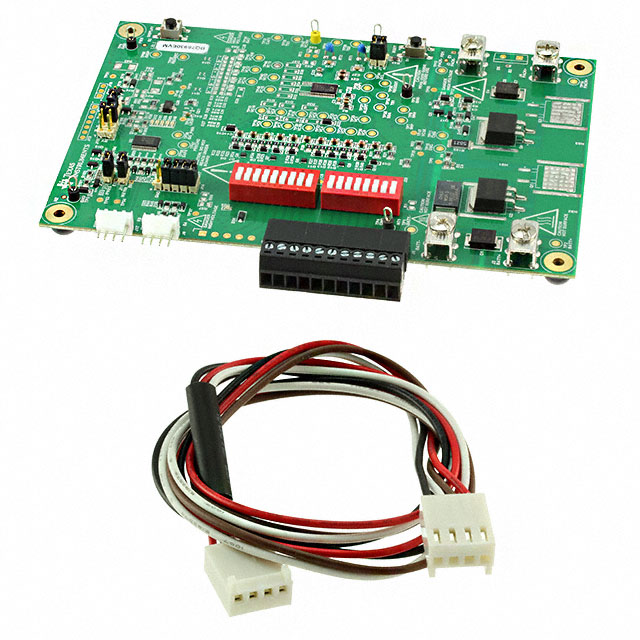

BQ76930 Battery Monitor Power Management Evaluation Board
