R180060007

Active

Radiall USA, Inc.

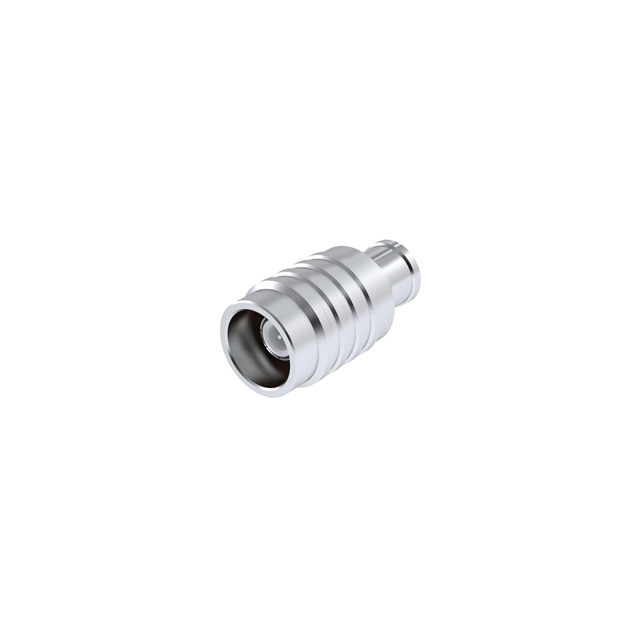

NEX10 M SL STR SD1/4 C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX10 M SL STR SD1/4 C50

Technical Specifications

Parameters and characteristics for this part

Specification	R180060007

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Impedance	Contact Termination	Center Contact Material	Frequency - Max [Max]	Voltage Rating	Body Material	Center Contact Plating	Fastening Type	Mounting Type	Connector Type	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Dielectric Material	Cable Group	Cable Group	Ingress Protection	Housing Color	Body Finish
Radiall USA, Inc. R180060007	NEX10	50 Ohms	Solder	Brass	20 GHz	500 V	Brass	Silver	Push-Pull	Free Hanging (In-Line)	Male Pin Plug	1	-55 °C	125 °C	Solder	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R180060007W	NEX10	50 Ohms	Solder	Brass	20 GHz	500 V	Brass	Silver	Push-Pull	Free Hanging (In-Line)	Male Pin Plug	1	-55 °C	125 °C	Solder	Polytetrafluoroethylene (PTFE)	HCF	0.25 in	IP68 - Dust Tight Waterproof	Silver	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.54

General part information

NEX10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
