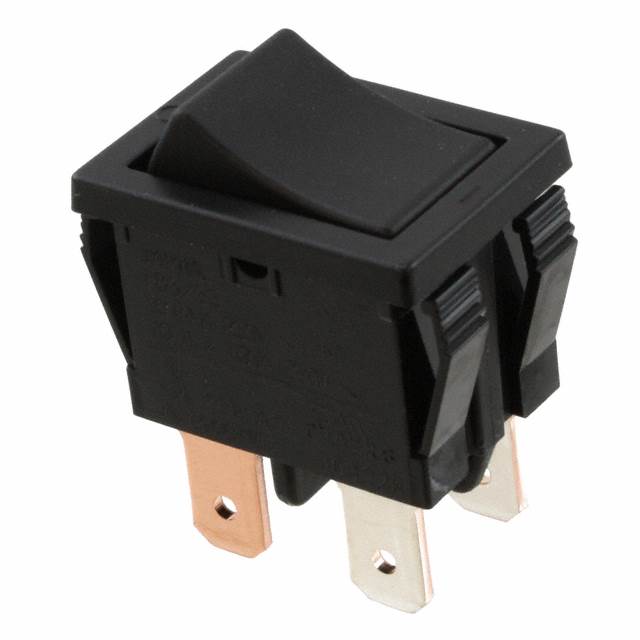

AJ7200BTVF
ActivePanasonic Electric Works
SWITCH ROCKER DPST 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
AJ7200BTVF
ActivePanasonic Electric Works
SWITCH ROCKER DPST 10A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AJ7200BTVF |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus, VDE, ENEC |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.50 | |
| 10 | $ 4.01 | |||
| 25 | $ 3.80 | |||
| 50 | $ 3.67 | |||
| 100 | $ 3.49 | |||
| 300 | $ 3.34 | |||
| 500 | $ 3.04 | |||
| 1000 | $ 2.91 | |||
Description
General part information
AJ7200 Series
Rocker Switch DPST 10A (AC) 250 V Panel Mount, Snap-In
