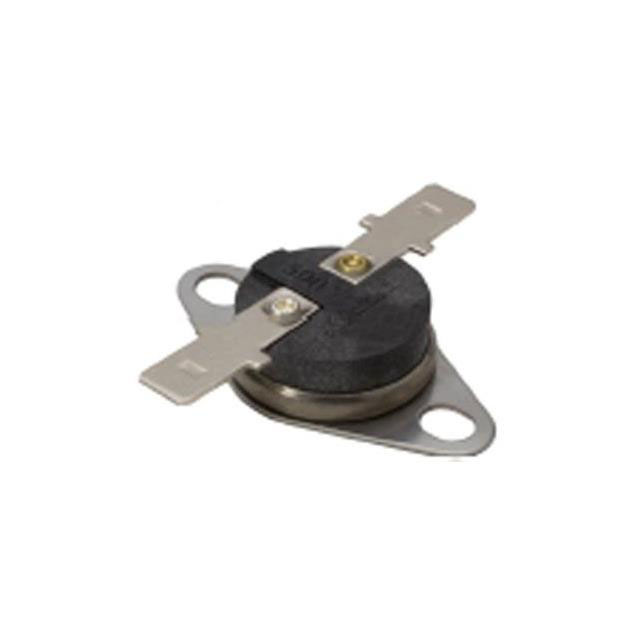

053GAB175A-160Y

Active

Sensata Technologies

THERMOSTAT 79DEG C SPST-NC CYL

Search across all available documentation for this part.

Active

Sensata Technologies

THERMOSTAT 79DEG C SPST-NC CYL

Technical Specifications

Parameters and characteristics for this part

Specification	053GAB175A-160Y

Circuit	SPST-NC
Current Rating - AC	5 A, 3 A
Current Rating - DC	1.5 A
Current Rating - DC	3 A
Mounting Type	Chassis Mount
Package / Case	Cylinder with Mounting Flange
Reset Temperature	160 °F
Reset Temperature	71 °C
Switching Cycles	100000
Switching Temperature	79 °C
Switching Temperature	175 °F
Termination Style	Quick Connect
Tolerance	5 °F

THERMOSTAT 79DEG C SPST-NC CYL

Part	Reset Temperature	Reset Temperature	Tolerance	Current Rating - DC	Current Rating - DC	Current Rating - AC	Switching Cycles	Termination Style	Mounting Type	Switching Temperature	Switching Temperature	Package / Case	Circuit
Sensata Technologies 053GAB175A-160Y	160 °F	71 °C	5 °F	1.5 A	3 A	3 A, 5 A	100000	Quick Connect	Chassis Mount	79 °C	175 °F	Cylinder with Mounting Flange	SPST-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

THERMOSTAT 79DEG C SPST-NC CYL
