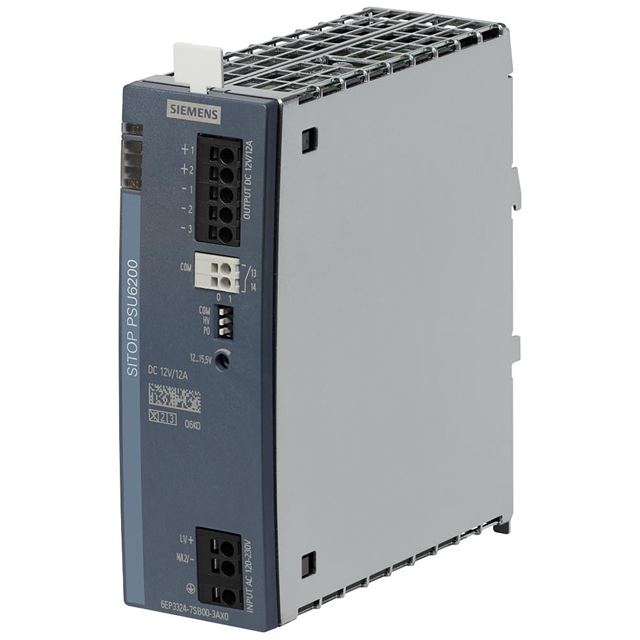

6EP33247SB003AX0

Active

Siemens

AC/DC DIN RAIL SUPPLY 12V 144W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 12V 144W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP33247SB003AX0

AC Voltage - Input [Max]	230 VAC, 264 VAC
AC Voltage - Input [Min]	85 VAC, 120 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	12 A
DC Voltage - Input (Max) [Max]	275 V
DC Voltage - Input (Min) [Min]	85 V
Efficiency	89.3 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	144 W
Size / Dimension [x]	4.92 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	45 mm
Size / Dimension [y]	1.77 "
Size / Dimension [z]	5.31 "
Size / Dimension [z]	135 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	12 V

Part	DC Voltage - Input (Min) [Min]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Approval Agency	Current - Output (Max) [Max]	Features	Voltage - Output 1	Number of Outputs	Applications	DC Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Power (Watts)	Input Type
Siemens 6EP33247SB003AX0	85 V	89.3 %	-25 °C	70 °C	230 VAC 264 VAC	85 VAC 120 VAC	CB cCSAus CE CSA cUL cULus UL	12 A	Adjustable Output IP20 Universal Input	12 V	1	Hazardous Locations Industrial ITE (Commercial)	275 V	45 mm	1.77 "	5.31 "	4.92 in	135 mm	125 mm	60950-1 UL 508	144 W	AC or DC
