A79024-001

Active

Omnetics

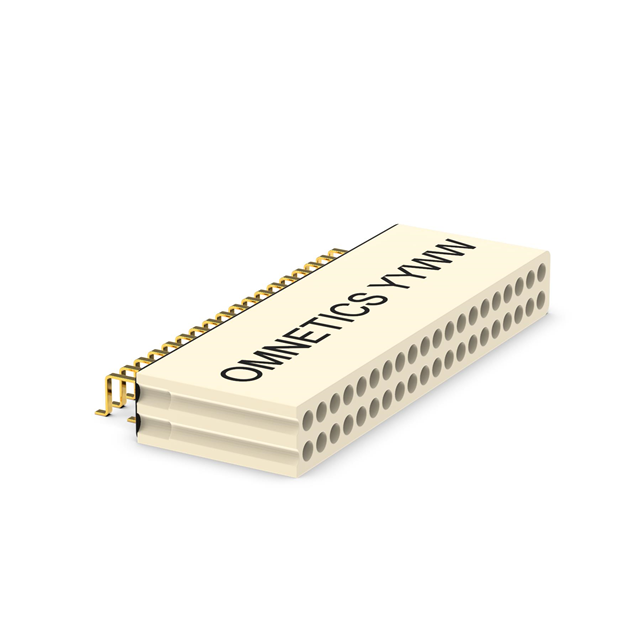

36 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79024-001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

36 POSITION DUAL ROW MALE NANO-M

Part	Insulation Height	Insulation Height	Termination	Style	Insulation Material	Contact Shape	Number of Positions Loaded	Fastening Type	Contact Type	Contact Finish - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Number of Rows	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Positions
Omnetics A79024-001	0.07 in	1.78 mm	Solder	Board to Cable/Wire	Thermoplastic	Circular	All	Push-Pull	Male Pin	Gold	Header	0.025 in	0.64 mm	Beryllium Copper	Surface Mount, Right Angle	2	Guide Pin	1.27 µm	50 µin	-55 °C	125 °C	Natural	0.03 in	0.76 mm	Shrouded - 4 Wall	36
