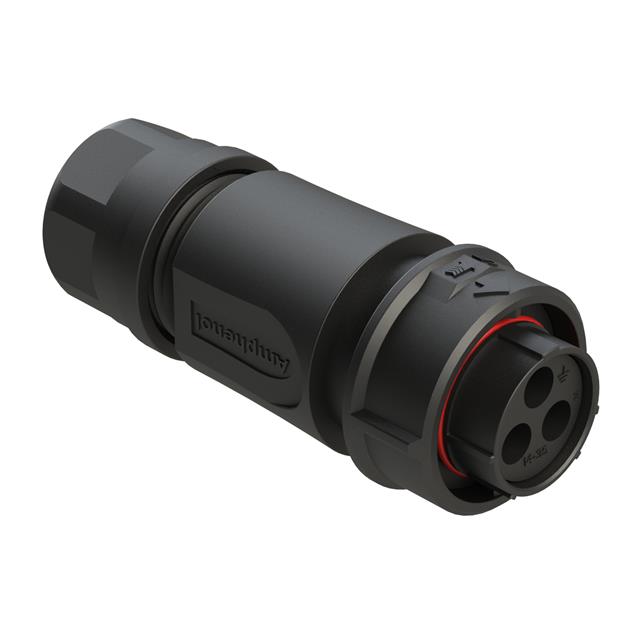

FLS6BS14N3S03
ActiveAmphenol Sine Systems Corp
3 POSITION PLUG, SOCKET, SHELL S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLS6BS14N3S03
ActiveAmphenol Sine Systems Corp
3 POSITION PLUG, SOCKET, SHELL S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLS6BS14N3S03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 8 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Ingress Protection | IP69K, IP68, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 14-3 |
| Shielding | Unshielded |
| Type | For Female Sockets |
FLS6BS Series
| Part | Material Flammability Rating | Shielding | Connector Type | Orientation | Type | Note | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Contact Size | Fastening Type | Insert Material | Contact Type | Shell Size - Insert | Primary Material | Housing Color | Mounting Type | Features | Contact Shape | Number of Positions | Contact Size | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Female Sockets | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 16 | Bayonet Lock | Thermoplastic | Crimp | 10-3 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | ||||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Female Sockets | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 8 | Bayonet Lock | Thermoplastic | Crimp | 14-3 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | ||||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Female Sockets | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 16 | Bayonet Lock | Thermoplastic | Crimp | 10-3 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | ||||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Female Sockets | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 16 | Bayonet Lock | Thermoplastic | Crimp | 10-4 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | 4 | |||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Female Sockets | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | Bayonet Lock | Thermoplastic | Crimp | 10-4 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | 4 | 16 (2) 20 (2) | |||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Male Pins | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | Bayonet Lock | Thermoplastic | Crimp | 12-4 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | 4 | 12 (2) 20 (2) | |||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Male Pins | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 16 | Bayonet Lock | Thermoplastic | Crimp | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | 7 | 14 | 7 | ||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Female Sockets | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 20 | Bayonet Lock | Thermoplastic | Crimp | 10-6 | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | 6 | |||
Amphenol Sine Systems Corp | UL94 V-0 | Unshielded | Plug Housing | N | For Male Pins | Contacts Not Included | 125 °C | -40 °C | IP67 IP68 IP69K | 12 | Bayonet Lock | Thermoplastic | Crimp | Plastic | Black | Free Hanging (In-Line) | Backshell Coupling Nut | Circular | 4 | 14 | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.40 | |
| 10 | $ 13.65 | |||
| 25 | $ 13.12 | |||
| 50 | $ 12.60 | |||
| 100 | $ 11.90 | |||
| 250 | $ 10.85 | |||
| 500 | $ 10.15 | |||
| 1000 | $ 9.31 | |||
Description
General part information
FLS6BS Series
3 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
