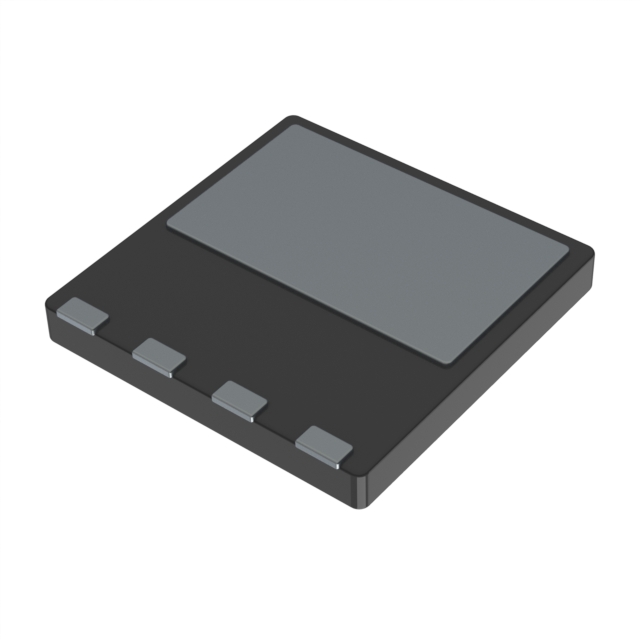

IPL60R225CFD7AUMA1
ActiveINFINEON’S 600V COOLMOS™ CFD7 SUPERJUNCTION POWER MOSFET IPL60R225CFD7 IN D2PAK PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
IPL60R225CFD7AUMA1
ActiveINFINEON’S 600V COOLMOS™ CFD7 SUPERJUNCTION POWER MOSFET IPL60R225CFD7 IN D2PAK PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPL60R225CFD7AUMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 12 A |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1015 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-PowerTSFN |
| Power Dissipation (Max) | 68 W |
| Rds On (Max) @ Id, Vgs | 225 mOhm |
| Supplier Device Package | PG-VSON-4-1 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.77 | |
| 10 | $ 2.30 | |||
| 100 | $ 1.83 | |||
| 500 | $ 1.55 | |||
| 1000 | $ 1.31 | |||
| Digi-Reel® | 1 | $ 2.77 | ||
| 10 | $ 2.30 | |||
| 100 | $ 1.83 | |||
| 500 | $ 1.55 | |||
| 1000 | $ 1.31 | |||
| Tape & Reel (TR) | 3000 | $ 1.25 | ||
| 6000 | $ 1.20 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.98 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.04 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.63 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.18 | |||
Description
General part information
IPL60R225 Series
Infineon’s600V CoolMOS™ CFD7Superjunction MOSFET IPL60R225CFD7 in ThinPAK 8x8 fits perfectly for resonant topologies in high powerSMPS, such asserver,telecomandEV chargingstations, where it enables significant efficiency improvements. As successor to theCFD2 SJ MOSFETfamily it comes with reduced gate charge, improved turn-off behavior and up to 69% reduced reverse recovery charge compared to competitors.
