C3063.41.86
ActivePrysmian Group

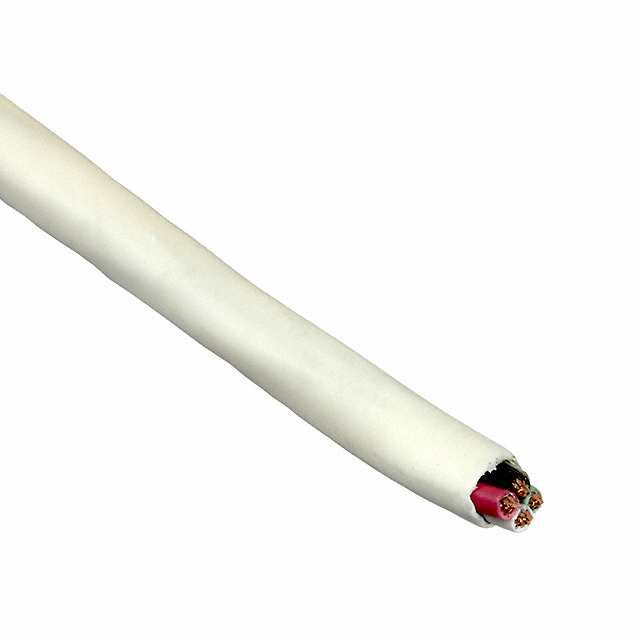

CABLE 4COND 18AWG NAT SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
C3063.41.86
ActivePrysmian Group
CABLE 4COND 18AWG NAT SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3063.41.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.7 mm |
| Jacket (Insulation) Diameter [diameter] | 0.185 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ' |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 702.32 | |
| 1 | $ 219.74 | |||
| 5 | $ 179.79 | |||
| 5 | $ 624.28 | |||
| 10 | $ 139.84 | |||
| 10 | $ 565.75 | |||
| 1000 | $ 0.60 | |||
Description
General part information
C3063 Series
4 Conductor Multi-Conductor Cable Natural 18 AWG Foil 500.0' (152.4m)
