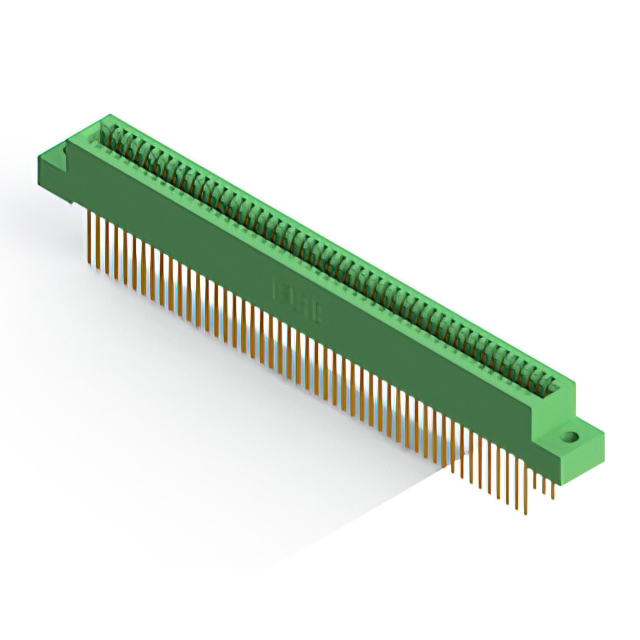

325-098-540-209
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 98POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-098-540-209
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 98POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-098-540-209 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 0.16 in |
| Flange Feature [diameter] | 4.06 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 98 |
| Number of Positions/Bay/Row [custom] | 49 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
325-098 Series
| Part | Card Thickness | Card Thickness | Flange Feature | Contact Finish | Termination Rows | Pitch [x] | Pitch [x] | Read Out | Number of Rows | Number of Positions | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Material - Insulation | Number of Positions/Bay/Row [custom] | Mounting Type | Color | Gender | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | ||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Solder | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | |||
EDAC Inc. | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | 0.16 in | 4.06 mm |
EDAC Inc. | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Solder Eyelet(s) | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | 0.16 in | 4.06 mm |
EDAC Inc. | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Solder | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | ||
EDAC Inc. | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | ||
EDAC Inc. | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Solder | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | 0.16 in | 4.06 mm |
EDAC Inc. | 3.18 mm | 0.125 in | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge | |||
EDAC Inc. | 3.18 mm | 0.125 in | Gold | 2 | 2.54 mm | 0.1 in | Dual | 2 | 98 | Solder Eyelet(s) | Cantilever | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Copper Alloy | Diallyl Phthalate (DAP) | 49 | Through Hole | Green | Female | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.31 | |
Description
General part information
325-098 Series
98 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
