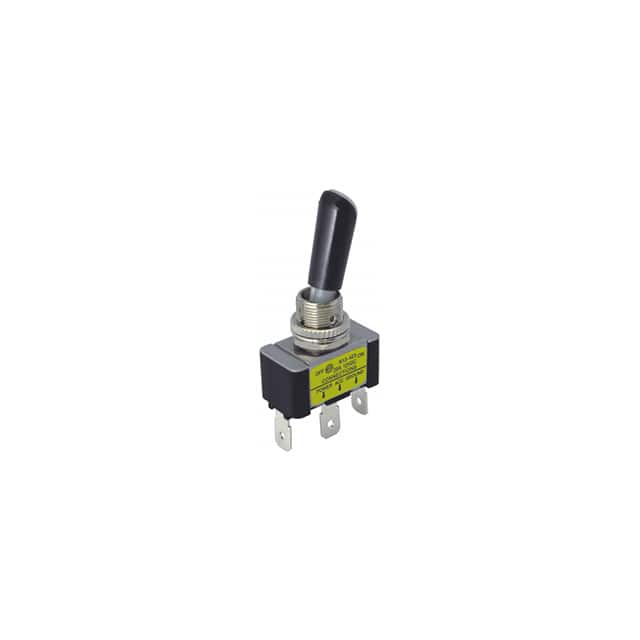

Specification	TA1C-1A-DC-1-RG

Actuator Length	25 mm
Actuator Type	Standard Round
Bushing Thread	M12 x 0.75
Bushing Thread Diameter	12 mm
Bushing Thread Pitch	0.75 mm
Circuit	SPST
Color	Green, Red
Current Rating	20 A
Electrical Life (Cycles)	6000 Cycles
Illumination	Illuminated
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	12.2 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - DC	12 V

TA1C-1A Series

Part	Electrical Life (Cycles)	Illumination	Quick Connect Size (0.250")	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Illumination Voltage (Nominal)	Current Rating	Circuit	Bushing Thread Pitch	Bushing Thread	Bushing Thread Diameter	Panel Cutout Diameter	Panel Cutout Shape	Actuator Length	Actuator Type	Mounting Type	Voltage Rating - DC	Switch Function	Color	Illumination Type
Switch Components TA1C-1A-DC-1-RG	6000 Cycles	Illuminated	0.25 in	Quick Connect	85 °C	-20 °C	12 V	20 A	SPST	0.75 mm	M12 x 0.75	12 mm	12.2 mm	Circular	25 mm	Standard Round	Panel Mount	12 V	On-Off	Green Red	LED
