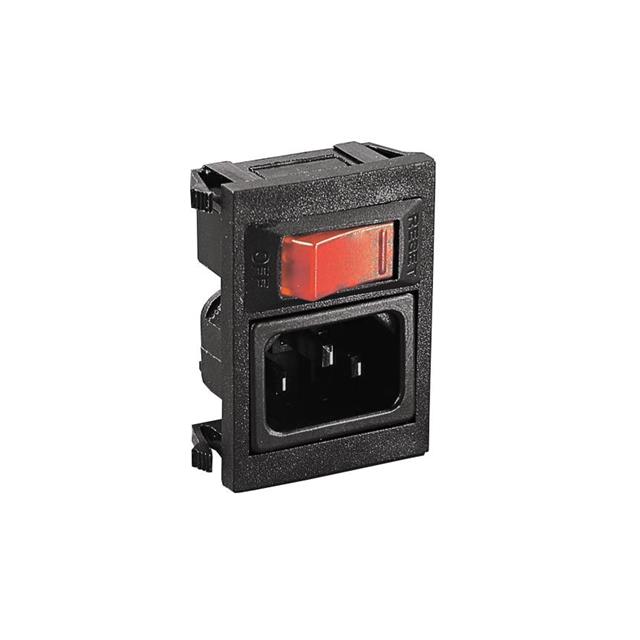

BZV04/Z0000/04

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZV04/Z0000/04	BZV04/Z Series

Accomodates a Fuse	True	True
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	-	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm	34.4 mm
Panel Cutout Dimensions [y]	48.4 mm	48.4 mm
Panel Thickness [Max]	3 mm	3 mm
Panel Thickness [Max]	0.118 in	0.118 in
Panel Thickness [Min]	0.039 in	0.039 in
Panel Thickness [Min]	1 mm	1 mm
Termination	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Termination	Voltage Rating - Appliance Inlet	Connector Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Connector Style	Mounting Type	Material Flammability Rating	Features	Approval Agency	Accomodates a Fuse
BULGIN LIMITED BZV04/Z0000/14	Unfiltered - Commercial	Quick Connect - 0.110" (2.8mm)	250 VAC	Receptacle, Male Blades - Module	3 mm	0.118 in	0.039 in	1 mm	34.4 mm	48.4 mm	10 A	Fuse Holder	IEC 320-C14	Panel Mount, Snap-In	UL94 V-0	Voltage Selector	CSA, ENEC, UL, VDE
BULGIN LIMITED BZV04/Z0000/04	Unfiltered - Commercial	Quick Connect - 0.110" (2.8mm)	250 VAC	Receptacle, Male Blades - Module	3 mm	0.118 in	0.039 in	1 mm	34.4 mm	48.4 mm	10 A	Fuse Holder, Twin Fused	IEC 320-C14	Panel Mount, Snap-In	UL94 V-0		CSA, ENEC, UL, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	120	$ 13.74
Newark	Each	1	$ 19.19

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
