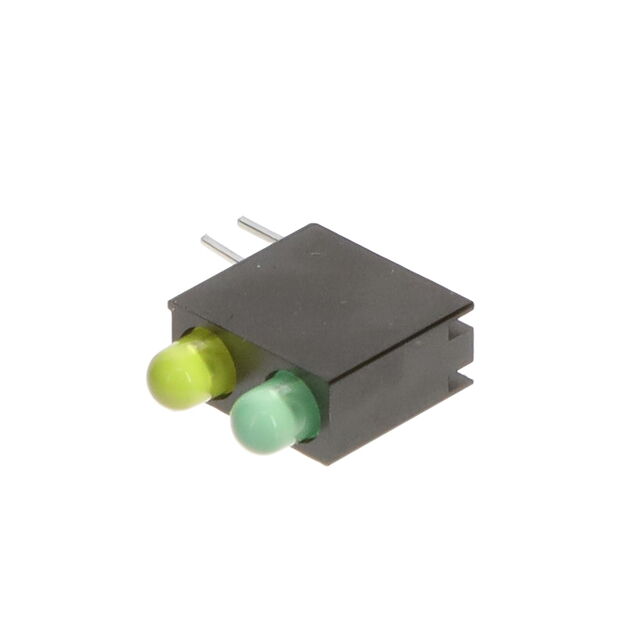

LTL-42D1NMHDP1

Active

Diodes Inc

DUAL COLOR LED ARRAY, YELLOW/GREEN, DIFFUSED, T-1, 2.9MM,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTL-42D1NMHDP1

Active

Diodes Inc

DUAL COLOR LED ARRAY, YELLOW/GREEN, DIFFUSED, T-1, 2.9MM,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTL-42D1NMHDP1

Color	Yellow, Green
Configuration	2 High
Current	120 mA, 80 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	12.6 mcd, 5.6 mcd
Viewing Angle	60 °
Voltage Rating	2.1 V, 2.1 V
Wavelength - Peak	565 nm, 585 nm

LTL-42 Series

Part	Millicandela Rating	Lens Size	Lens Size	Voltage Rating	Lens Type	Color	Current	Configuration	Lens Style	Wavelength - Peak	Viewing Angle
Diodes Inc LTL-42D1NMHDP1	5.6 mcd 12.6 mcd	3 mm	T-1	2.1 V 2.1 V	Diffused Tinted	Green Yellow	80 mA 120 mA	2 High	Round with Domed Top	565 nm 585 nm	60 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.53
		10	$ 0.37
		420	$ 0.22
		840	$ 0.21
		1260	$ 0.20
		2100	$ 0.19
		5040	$ 0.18
		10080	$ 0.17
		25200	$ 0.16

Description

General part information

LTL-42 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Yellow (x 1) Diffused, Tinted 2.1V Green, 2.1V Yellow 120mA Green, 80mA Yellow Round with Domed Top 3mm, T-1
