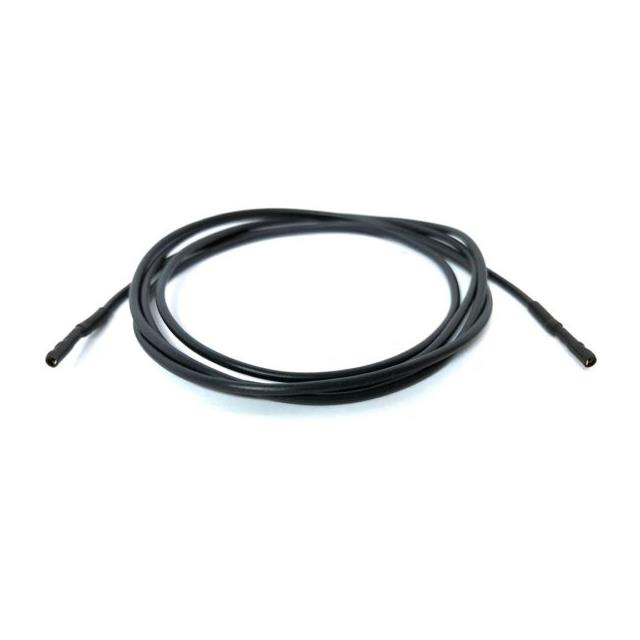

9110-18BLK

Active

E-Z-Hook

TEST LEAD SOCKET TO SOCKET 18"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD SOCKET TO SOCKET 18"

Technical Specifications

Parameters and characteristics for this part

TEST LEAD SOCKET TO SOCKET 18"

Part	Contents	Material - Insulation	Configuration	Temperature Range	Temperature Range	2nd Connector	2nd Connector	2nd Connector	Wire Gauge	1st Connector	1st Connector	1st Connector	Cable Length	Cable Length	Current Rating (Amps)	Voltage - Rated	Voltage - Rated
E-Z-Hook 9110-18BLK	1 Lead, Black	Poly-Vinyl Chloride (PVC)	Socket to Socket	105 °C	221 °F	Socket, Square	0.64 mm	0.025 in	22 AWG	0.025 in	Socket, Square	0.64 mm	457.2 mm	18 in	2.5 A	1 kV	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18.0" (457.20mm) Socket, Square, 0.025" (0.64mm) To Socket, Square, 0.025" (0.64mm) Test Lead 1000VDC (1kV) 1 Lead, Black
