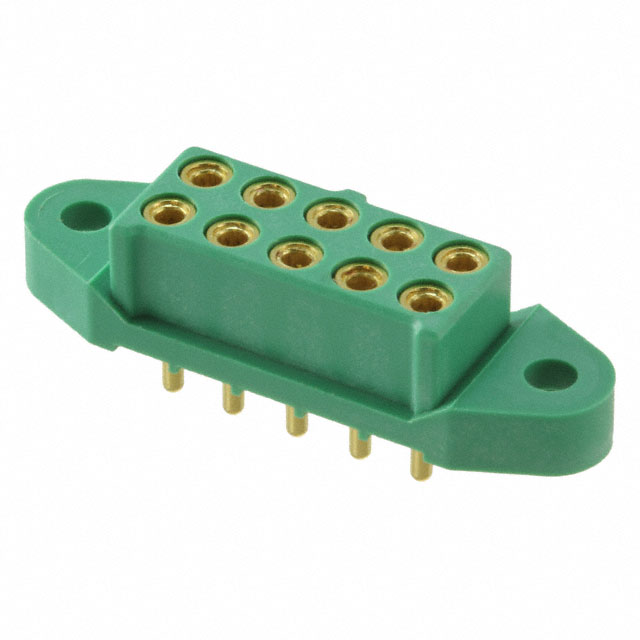

Specification	M300-FV3104500

Applications	General Purpose, Telecommunications, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 µin
Contact Length - Post	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket, Power
Features	Mating Flange
Insulation Color	Green
Insulation Height	0.256 in
Insulation Material	Glass Filled, Nylon 4/6, Polyamide (PA46)
Mated Stacking Height	8.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	600 V

M300-FV3 Series

Part	Contact Type	Contact Finish - Mating	Connector Type	Row Spacing - Mating	Mounting Type	Insulation Height	Number of Positions Loaded	Termination	Number of Rows	Pitch - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Material Flammability Rating	Mated Stacking Height	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Style	Features	Number of Positions	Voltage Rating	Insulation Material	Contact Shape	Applications	Contact Material
Harwin Inc. M300-FV3104500	Female Socket Power	Gold	Receptacle	0.118 in	Through Hole	0.256 in	All	Solder	2	0.118 in	10 µin	0.126 in	UL94 V-0	8.9 mm	Green	-65 °C	175 °C	Board Board or Cable	Mating Flange	10	600 V	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Automotive General Purpose Telecommunications	Beryllium Copper
