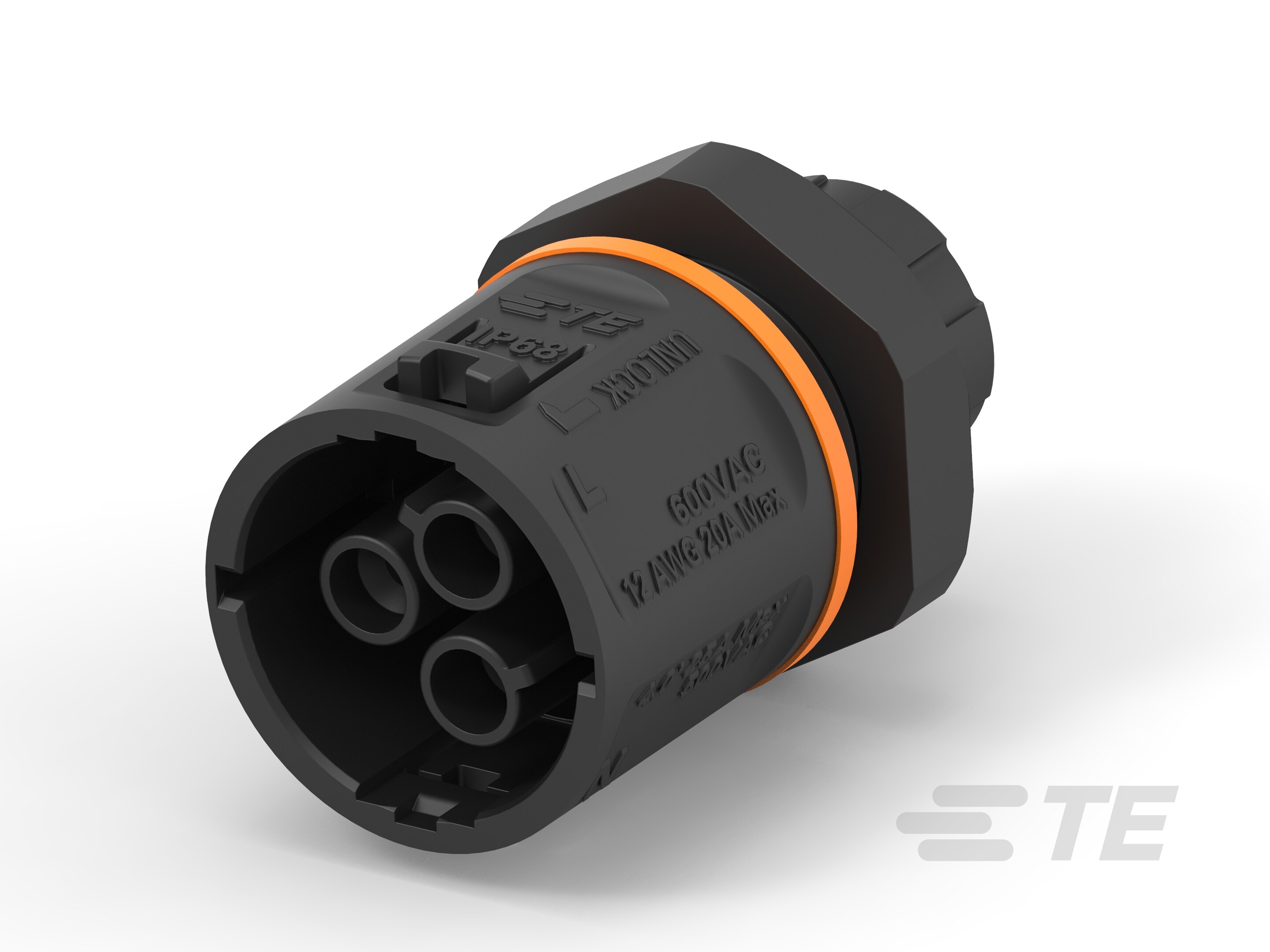

Specification	1-2359422-2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP67
Insert Material	Polybutylene Terephthalate, PBT, PC, Polycarbonate
Material Flammability Rating	UL94 V-0, UL94 HF-1
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	B
Position Types	Power
Shell Material	Polycarbonate (PC), Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Type	For Female Sockets

NECTOR T Series Series

Part	Connector Type	Cable Opening (Min)	Cable Opening (Max)	Voltage Rating	Orientation	Fastening Type	Color	Primary Material	Number of Positions	Position Types	Material Flammability Rating	Termination	Applications	Insert Material	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Features	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Contact Material	Mounting Type	Current Rating Options	Backshell Material, Plating	Shell Material
TE Connectivity AMP Connectors 2379238-2	Male Pins Receptacle	0.413 in	0.591 in	600 V	B	Latch Lock Push-Pull	Black	Plastic	3	Power	UL94 HF-1 UL94 V-0	Screw	Lighting	PBT PC Polybutylene Terephthalate Polycarbonate	Unshielded	-40 °C	85 °C	Backshell	Dust Tight Waterproof	IP67 IP68	Tin	Copper Alloy	Free Hanging (In-Line)	20A 25A	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)
