3K012-4RN3AG

Active

Grayhill Inc.

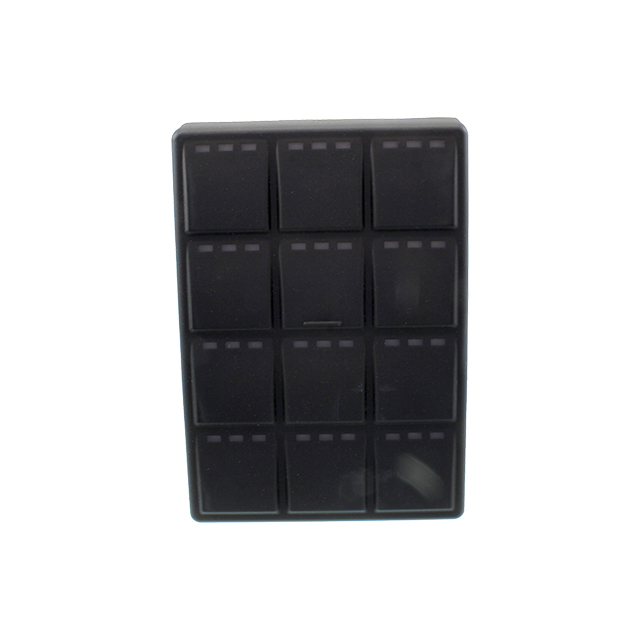

SWITCH KEYPAD 12KEY ILLUM

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 12KEY ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	3K012-4RN3AG

Approval Agency	CE
Illumination	Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Key Color	Black
Key Type	Rubber Overlay
Legend	Blank Buttons
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	3
Mounting Type	Panel Mount, Front
Number of Keys	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operational Life	1000000 Cycles
Output Type	CAN Bus (CANopen)
Panel Cutout Dimensions [diameter]	46.99 mm
Switch Type	Snap Dome
Termination Style	Connector

SWITCH KEYPAD 12KEY ILLUM

Part	Ingress Protection	Key Color	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Key Type	Legend Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Panel Cutout Dimensions [diameter]	Number of Keys	Switch Type	Operational Life	Termination Style	Legend	Approval Agency	Mounting Type	Output Type
Grayhill Inc. 3K012-4RN3AG	IP67 - Dust Tight, Waterproof	Black	85 °C	-40 °C	Illuminated	Rubber Overlay	Fixed	4	3	46.99 mm	12	Snap Dome	1000000 Cycles	Connector	Blank Buttons	CE	Panel Mount, Front	CAN Bus (CANopen)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 229.28

General part information

Keypad Switch 12 Rubber Overlay Keys Snap Dome Contacts CAN Bus (CANopen) Output Illuminated
