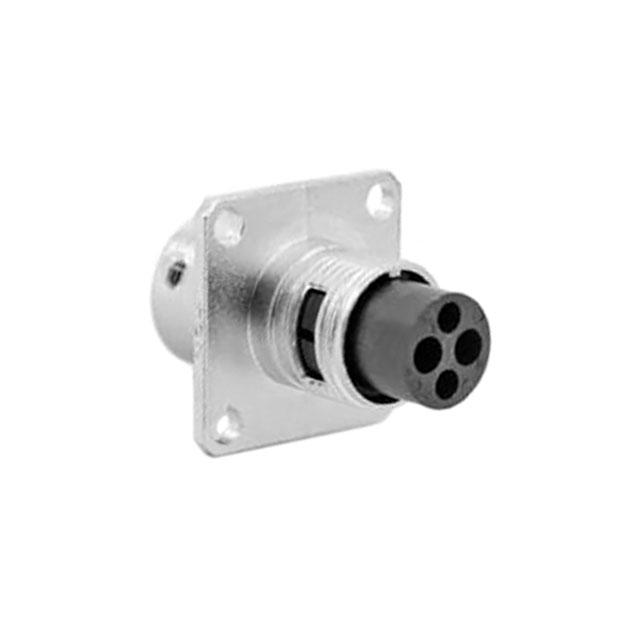

RT00102PNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 4POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 4POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	RT00102PNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20 (2), 16 (2)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-2
Shielding	Shielded
Type	For Male Pins

Part	Connector Type	Shielding	Shell Material	Shell Finish	Contact Type	Type	Mounting Feature	Material Flammability Rating	Housing Color	Ingress Protection	Insert Material	Shell Size - Insert	Note	Fastening Type	Contact Shape	Number of Positions	Contact Size	Orientation	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Sine Systems Corp RT00102PNH	Receptacle Housing	Shielded	Zinc Alloy	Nickel	Crimp	For Male Pins	Flange	UL94 V-0	Silver	IP67 - Dust Tight Waterproof	Thermoplastic	10-2	Contacts Not Included	Bayonet Lock	Circular	4	16 (2) 20 (2)	N	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
