A1287JFGR

Obsolete

Hoffman Enclosures, Inc.

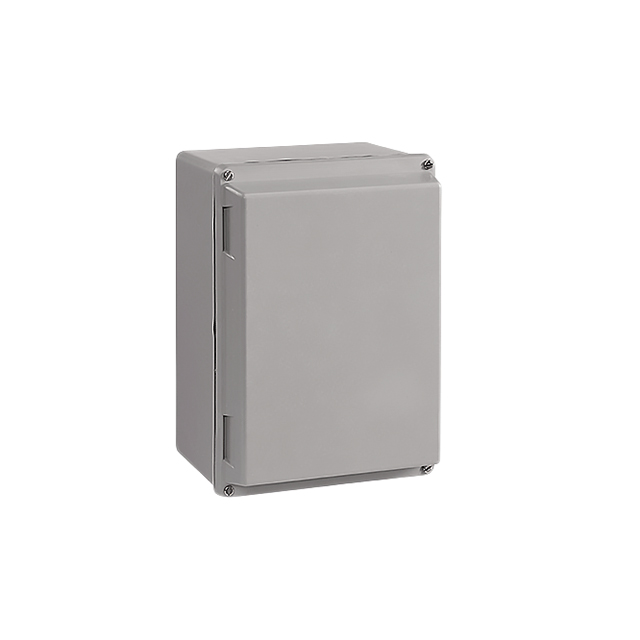

JUNCT BOX FIBER 12.01"L X 7.99"W

Search across all available documentation for this part.

Obsolete

Hoffman Enclosures, Inc.

JUNCT BOX FIBER 12.01"L X 7.99"W

Technical Specifications

Parameters and characteristics for this part

Specification	A1287JFGR

Area (L x W)	96 in˛
Area (L x W)	619 cm˛
Color	Gray
Container Type	Junction Box
Design	Hinged Door, Lid
Features	PCB Supports, Sealing Gasket
Height [z]	7.008 in
Height [z]	178 mm
Material	Fiberglass/Polyester
Ratings	UL-508A, NEMA 12, NEMA 3R, NEMA 13, NEMA 3, NEMA 4X, IP66, NEMA 4
Size / Dimension [x]	305 mm
Size / Dimension [x]	12.008 in
Size / Dimension [y]	203 mm
Size / Dimension [y]	7.992 in
Weight	2.7 kg
Weight	6 lbs

JUNCT BOX FIBER 12.01"L X 7.99"W

Part	Material	Features	Color	Area (L x W)	Area (L x W)	Weight	Weight	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Design	Ratings
Hoffman Enclosures, Inc. A1287JFGR	Fiberglass/Polyester	PCB Supports, Sealing Gasket	Gray	96 in˛	619 cm˛	2.7 kg	6 lbs	7.008 in	178 mm	203 mm	305 mm	12.008 in	7.992 in	Junction Box	Hinged Door, Lid	IP66, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Junction Box Fiberglass/Polyester Gray Hinged Door, Lid 12.008" L x 7.992" W (305.00mm x 203.00mm) X 7.008" (178.00mm)
