Technical Specifications
Parameters and characteristics for this part
| Specification | B40C5000A |
|---|---|
| Current - Average Rectified (Io) | 4 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 4-ESIP, 4-SIP |
| Supplier Device Package | 4-SIP, 4-SIL |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Peak Reverse (Max) [Max] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 125 | $ 4.01 | |
| 250 | $ 2.24 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.32 | |||
| Bulk | 500 | $ 0.90 | ||
Description
General part information

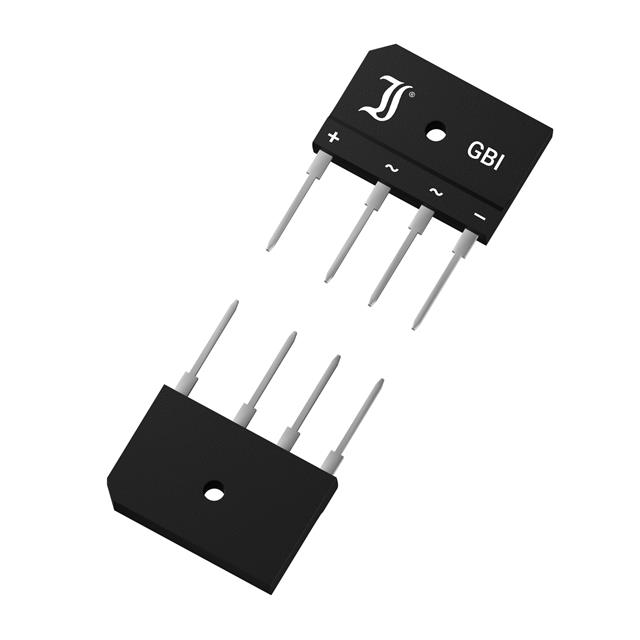

B40C5000 Series
Bridge Rectifier Single Phase Standard 80 V Through Hole 4-SIP
