Specification	POE21-240

Approval Agency	CE
Compliance	IEEE802.3at
Current - Output	875 mA
Efficiency	80 %
Features	OCP, SCP, OTP, OVP
Input Connector	RJ45 (Data, Power)
Maximum Data Rate	1000 Mbps
Minimum Data Rate	10 Mbps
Mounting Type	Desktop
Number of Ports	1
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	RJ45 (Data), 2.1mm Plug (Power)
Output Connector - Plug Size (Power)	2.1 mm
Output Connector Types	Plug (Power), RJ45 (Data)
Power (Watts) - Per Port	21 W
Size / Dimension Height	1.1 in
Size / Dimension Length	3.97 in
Size / Dimension Width	2.2 in
Type	Splitter
Typical Data Rate	100 Mbps
Voltage - Input (Maximum)	57 V
Voltage - Input (Minimum)	45 V
Voltage - Output	24 V
Weight	0.31 lb

POE21 Series

Part	Output Connector Types	Output Connector	Output Connector - Plug Size (Power)	Power (Watts) - Per Port	Features	Efficiency	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Weight	Mounting Type	Number of Ports	Current - Output	Input Connector	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Maximum Data Rate	Typical Data Rate	Minimum Data Rate	Compliance	Voltage - Output	Type	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height

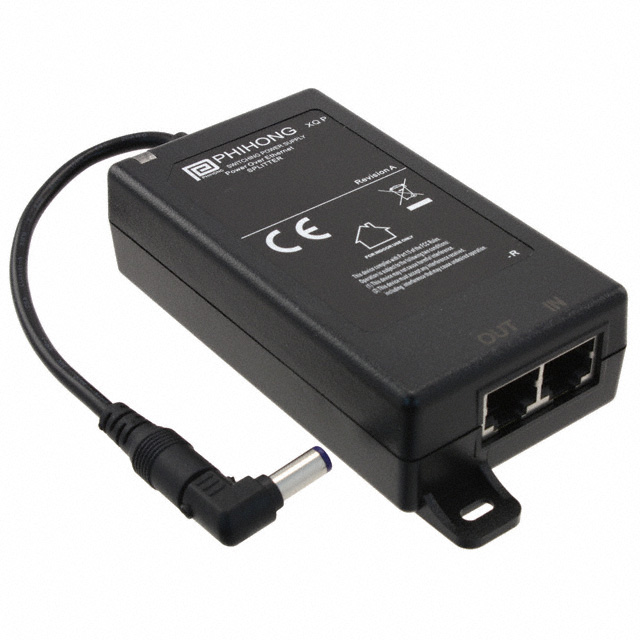

Phihong USA POE21-240	Plug (Power) RJ45 (Data)	2.1mm Plug (Power) RJ45 (Data)	2.1 mm	21 W	OCP OTP OVP SCP	80 %	CE	40 °C	0 °C	0.31 lb	Desktop	1	875 mA	RJ45 (Data Power)	45 V	57 V	1000 Mbps	100 Mbps	10 Mbps	IEEE802.3at	24 V	Splitter	2.2 in	3.97 in	1.1 in
