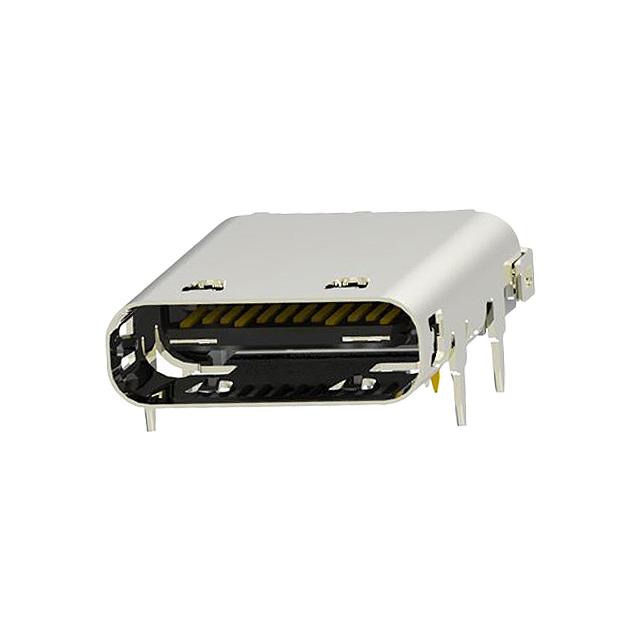

AUSB1-DFN-PTR1

Obsolete

Assmann WSW Components

CONN RCP USB3.1 TYPEC 24P SMD RA

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN RCP USB3.1 TYPEC 24P SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	AUSB1-DFN-PTR1

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	3 A
Gender	Receptacle
Insulation Color	Black
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Steel
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage - Rated	5 V

Part	Number of Ports	Number of Contacts	Termination	Voltage - Rated	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Current Rating (Amps)	Contact Finish	Mounting Type	Specifications	Mounting Feature	Gender	Shell/Shielding Material
Assmann WSW Components AUSB1-DFN-PTR1	1	24	Solder	5 V	USB-C (USB TYPE-C)	Black	-25 °C	105 ░C	10000	3 A	Gold	Surface Mount Right Angle Through Hole	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Horizontal	Receptacle	Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
